AUTEL MaxiBAS BT506 Intelligent Battery & Electrical System
$228.68
1 Item
Location:
Indonesia
Shipping Method:
Payment Method:
Compatibility:
Guarantee proper compatibility according to the listed part numbers and specifications.
Warranty & Returns:
7-day warranty after installation. Return shipping cost is paid by the buyer. If a return shipping label provided by us is used, the cost will be deducted from the refund amount.
Safe Transaction:
Protected by the Directorate of Consumer Protection – Ministry of Trade, RI.
Brand
Autel
- mpn
- BT506
Dimenssion
0cm x 0cm x 0cm
Weight
0kg
Condition
New
Description

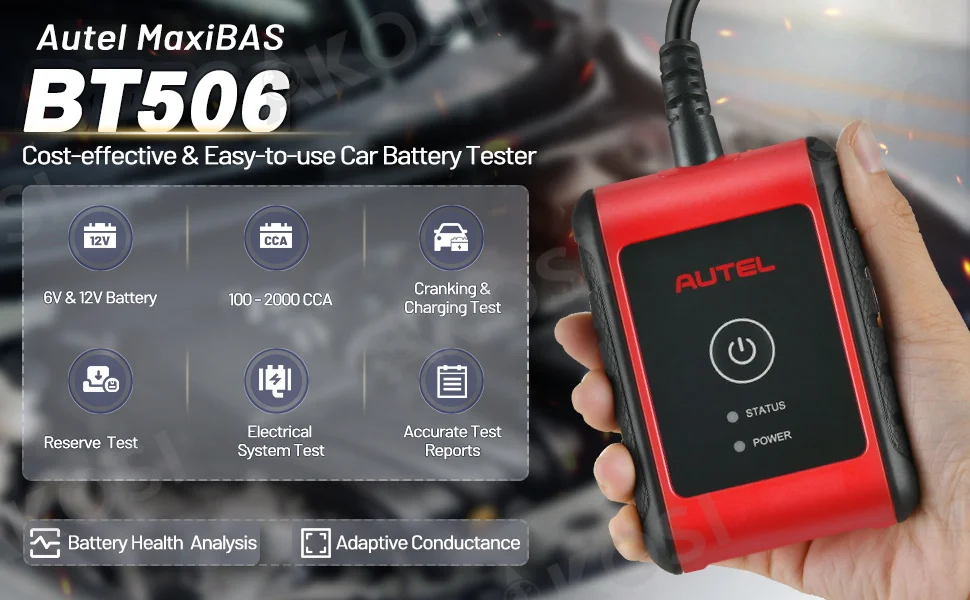

Autel MaxiBAS BT506 – Automatic Battery & Electrical System Analyzer
Autel MaxiBAS BT506 is an original Autel battery and electrical system analyzer designed to work with Autel MaxiSys Tablets or smart devices via iOS & Android apps. It utilizes advanced adaptive conductance analysis technology to deliver accurate evaluations of battery cold cranking capability and reserve capacity.
Package List

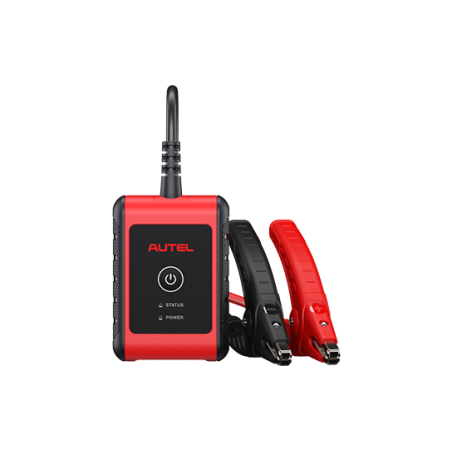

- 1x Autel MaxiBAS BT506 Main Unit
- 1x Battery Clamp Cable
Important Note
BT506 does not have a built-in screen. Testing and result display must be performed using an Autel MaxiSys Tablet or other smart devices through the free iOS or Android application.

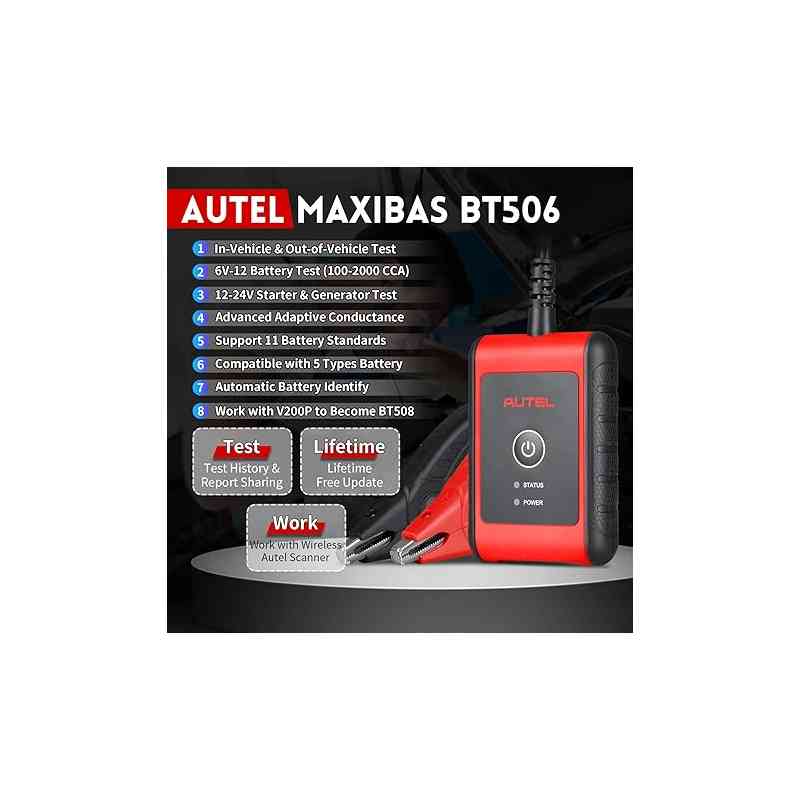

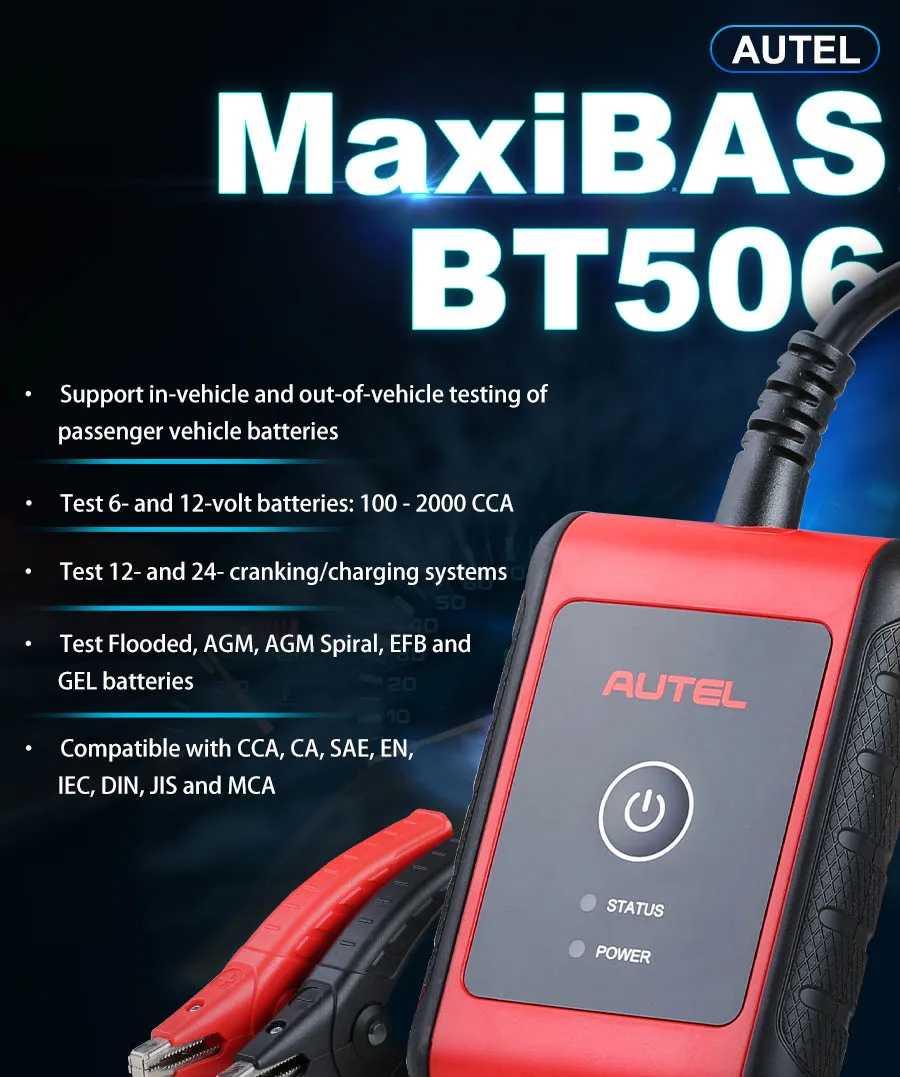

Main Features
- Integrated cable with battery clamps
- 6V & 12V battery testing (100 – 2000 CCA)
- 12V & 24V cranking and charging system testing
- Free mobile app download from Google Play & App Store
- Supports Flooded, AGM, AGM Spiral, EFB, and GEL batteries
- Battery health reports, temperature compensation, and cloud services
- Compatible with multiple international battery standards

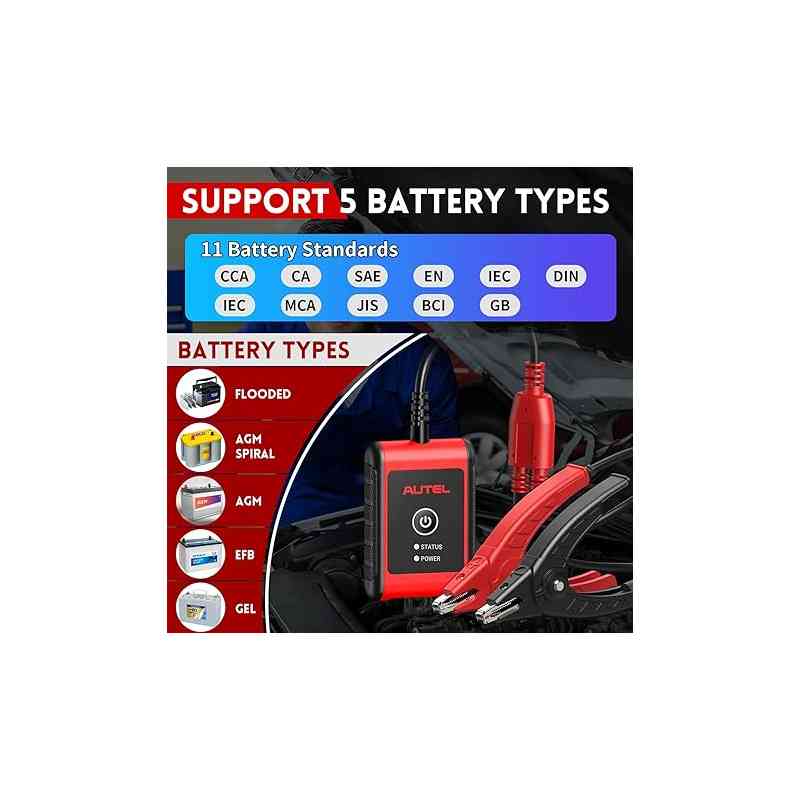

Battery Rating Standards Supported
- CCA
- CA
- MCA
- JIS
- DIN
- SAE
- IEC
- EN / EN2
- BCI
- GB
Testing Capabilities
- In-vehicle passenger car battery testing
- Out-of-vehicle battery testing
- Starter battery testing
- Charging system voltage testing (no amp measurement)
Technical Specifications
- Connectivity: USB 2.0 Type-C
- Bluetooth: V3.0 BR/EDR + V4.2 BLE Dual-Mode
- Input Voltage: 5V DC
- Operating Current: < 150mA at 12V DC
- Internal Battery: N/A
- CCA Range: 100 – 2000
- Voltage Range: 6 – 36V
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -20°C to 60°C
- Dimensions: 107 x 75 x 26 mm (excluding clamp cable)
- Weight: 320g

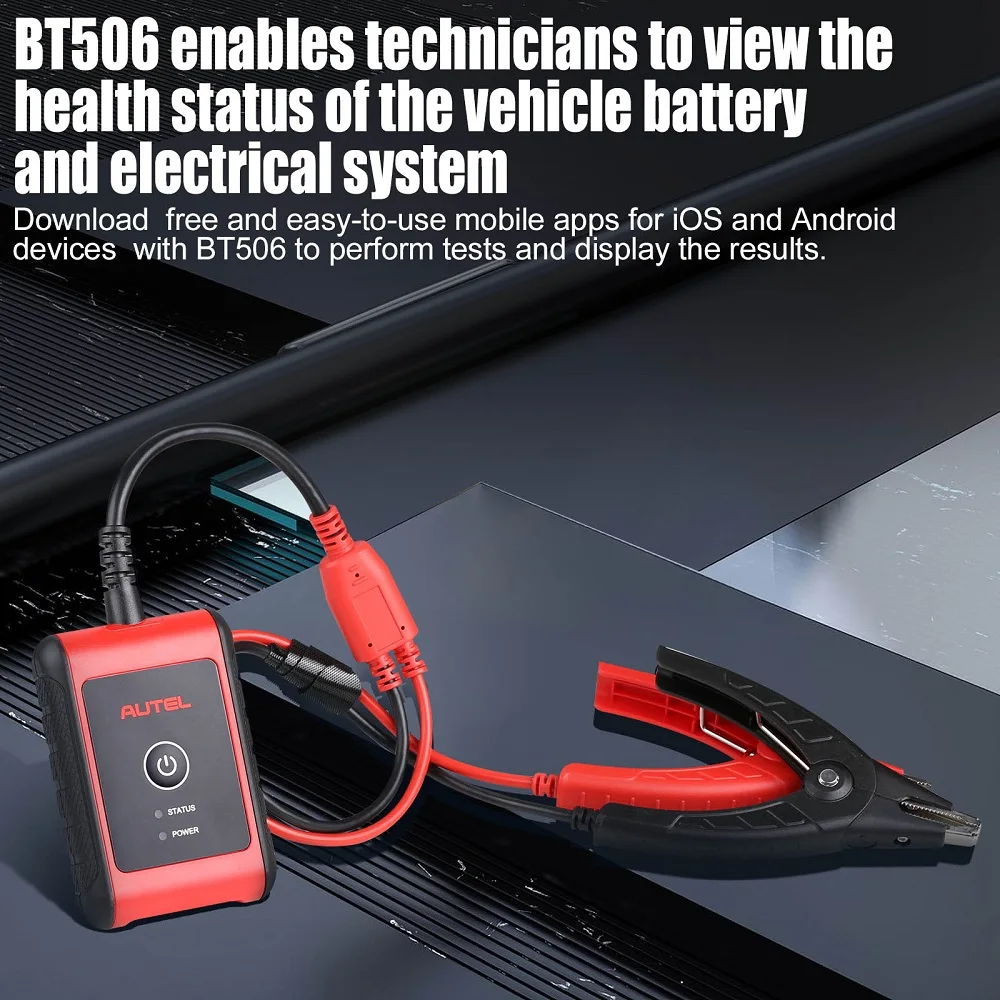

Mobile App & Cloud-Based Service

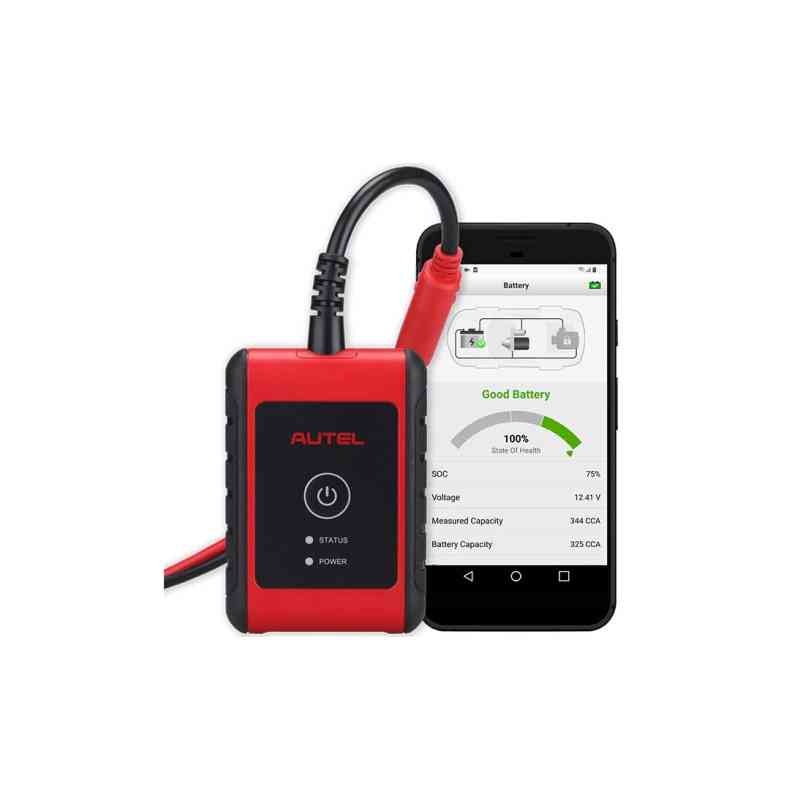

BT506 works with a free and user-friendly Autel mobile application, allowing technicians to perform battery tests, view results, and store battery health reports via cloud-based services for future reference and professional diagnostics.
