Digital Oscilloscope ZT-702S
- mpn
- ZT - 702S
Description
About this item

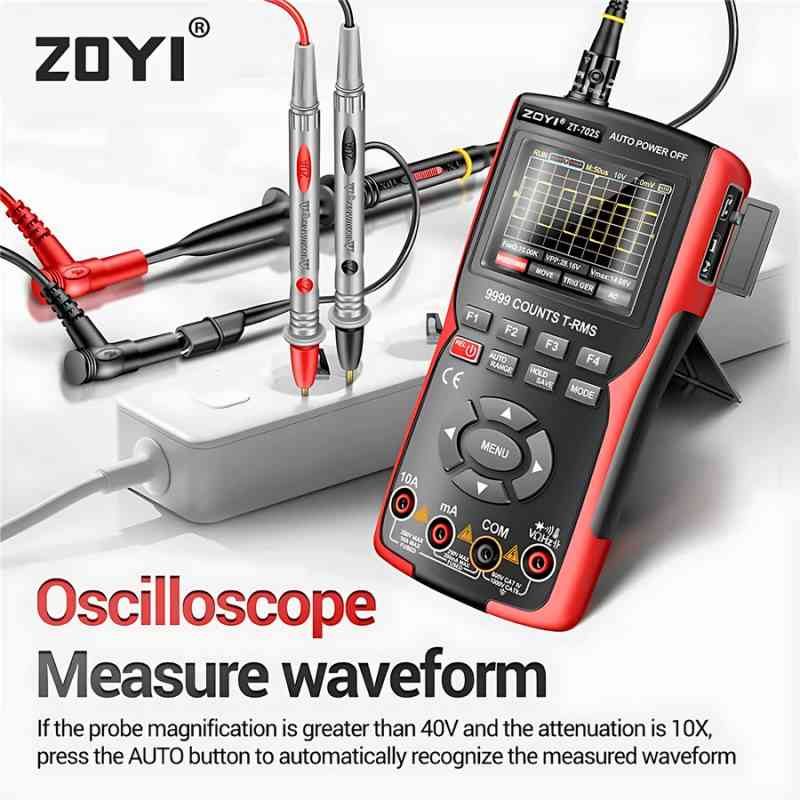

2.8-inch IPS Full-View Color Screen

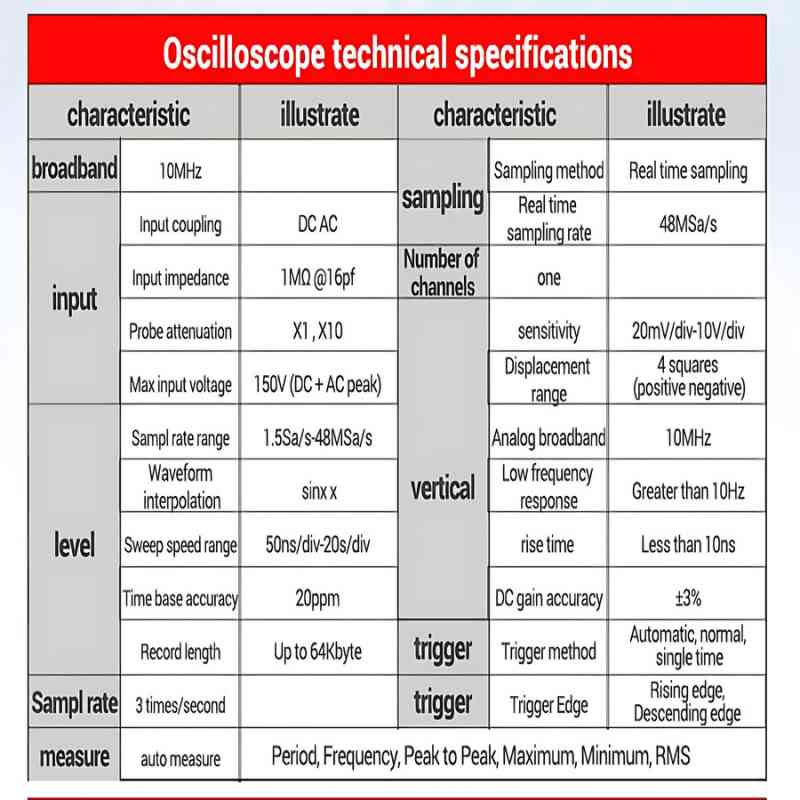

Oscilloscope multimeter with trigger function Auto/Normal/Single, ±400V input, automatic measurement scan, 200mV/div-10V/div vertical sensitivity, 8/50ns/div-20S/div horizontal scan range, and 20ppm time base accuracy.

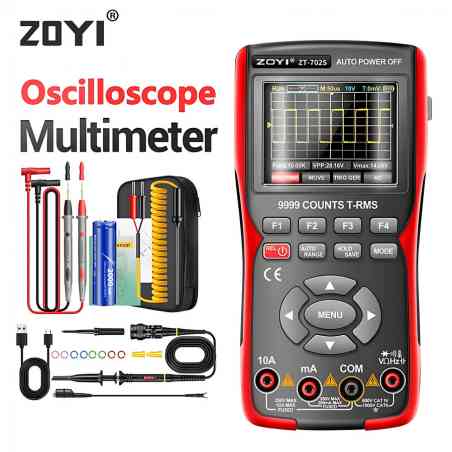

Dual Mode Design: Oscilloscope & Multimeter

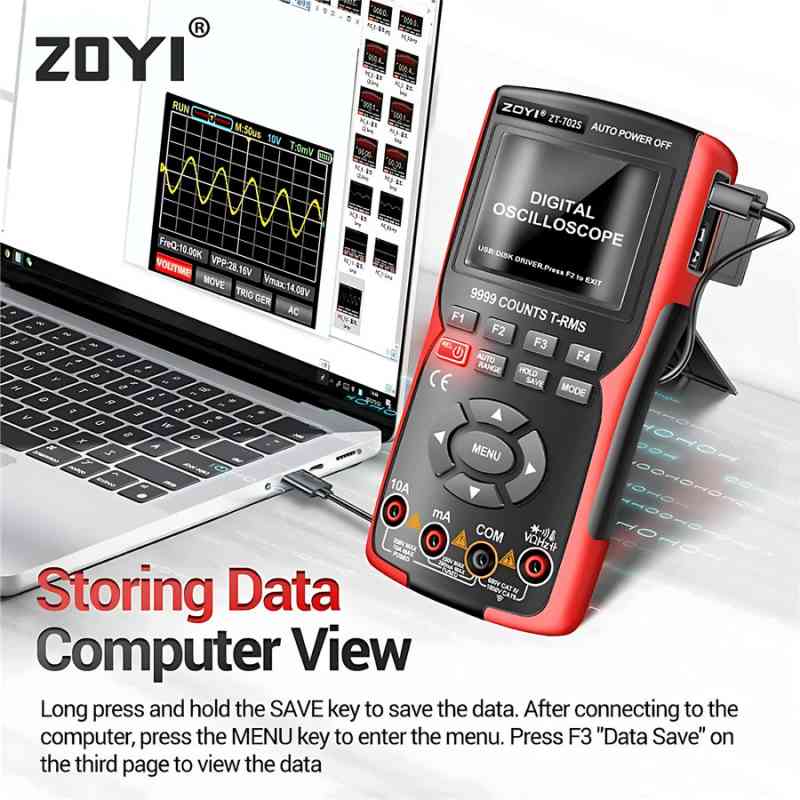

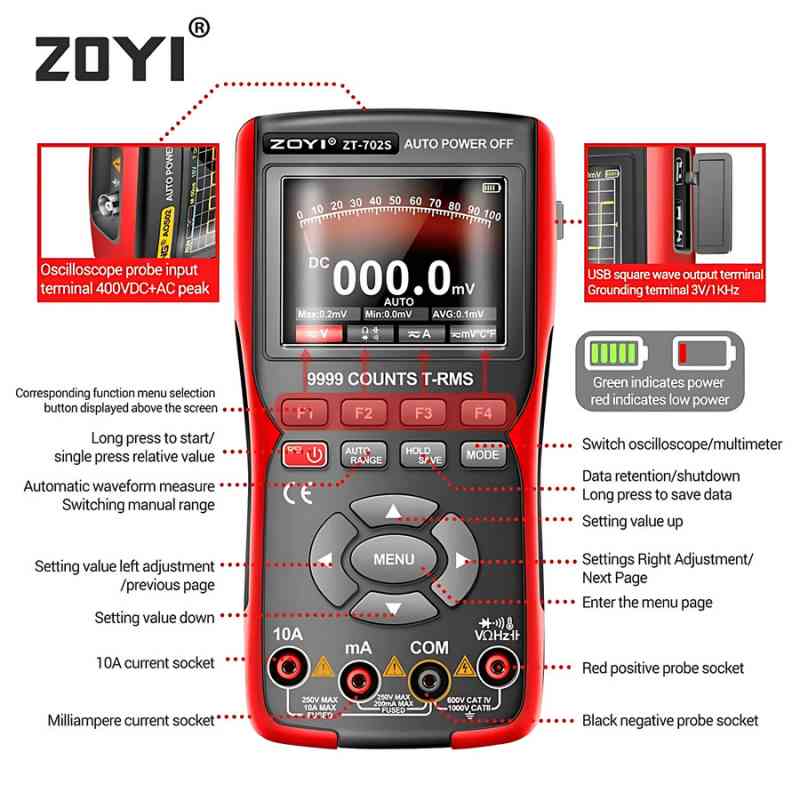

One-button mode switch, automatic waveform acquisition, time base calibration, data storage & export, language selection, adjustable backlight, shutdown timer, 3V-1kHz square wave output, memory function, and data transmission port. Easy to operate and improves work efficiency. Widely used in automotive, industrial equipment, sensors, heavy electrical equipment, finishing, and low voltage systems.

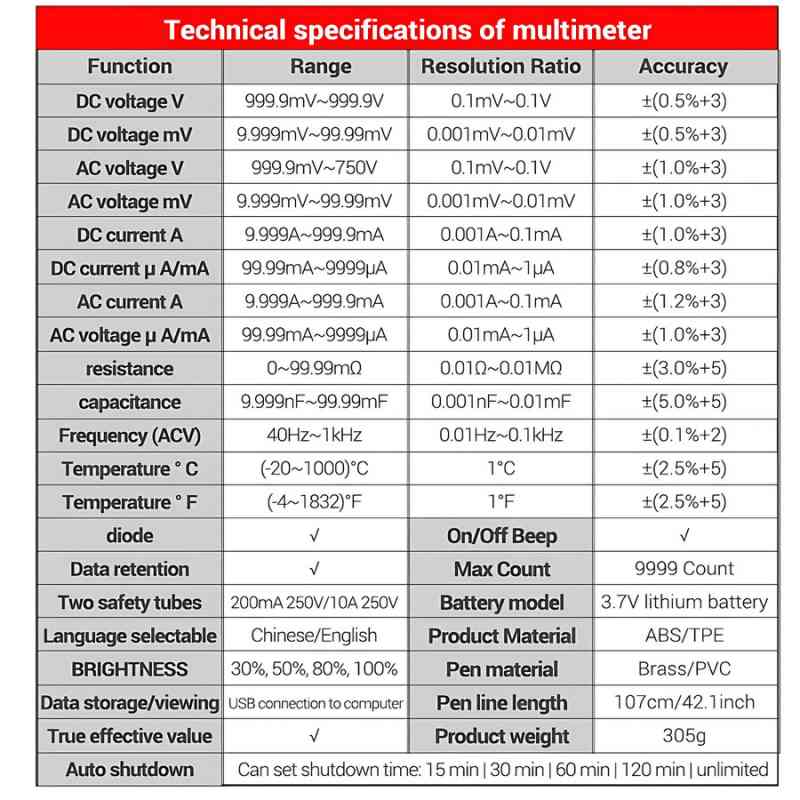

Multimeter Tester Mode
- Counts: 9999
- AC Voltage: 0-750V
- DC Voltage: 0-999.9V
- DC/AC Current: 0-9.999A
- Resistance: 0-99.99MΩ
- Capacitance: 0-9.999mF
- Frequency: 0-99.99kHz
- Temperature: -20°C-1000°C
- Diode & Continuity Measurement
Suitable for household, school, shopping mall, laboratory circuits, sockets, switches, lamps, and low-voltage circuits.
Safety & Durability
Conforms to CTA III 1000V, CTA II 600V safety levels, meets CE certification requirements. A/D high sampling conversion, 200mA-10A dual ceramic fuses, ABS+TPE double injection molding for strength and durability.
Power & Additional Features
Equipped with a 1X2000mAh battery and USB charging cable. Charging and data transmission share a Type-C interface. Includes 4V/1kHz square wave signal generator. Product size: 6.97 × 3.51 × 1.57 in.
