ANCEL AJ400 GDI Car Injector Cleaner Resistance

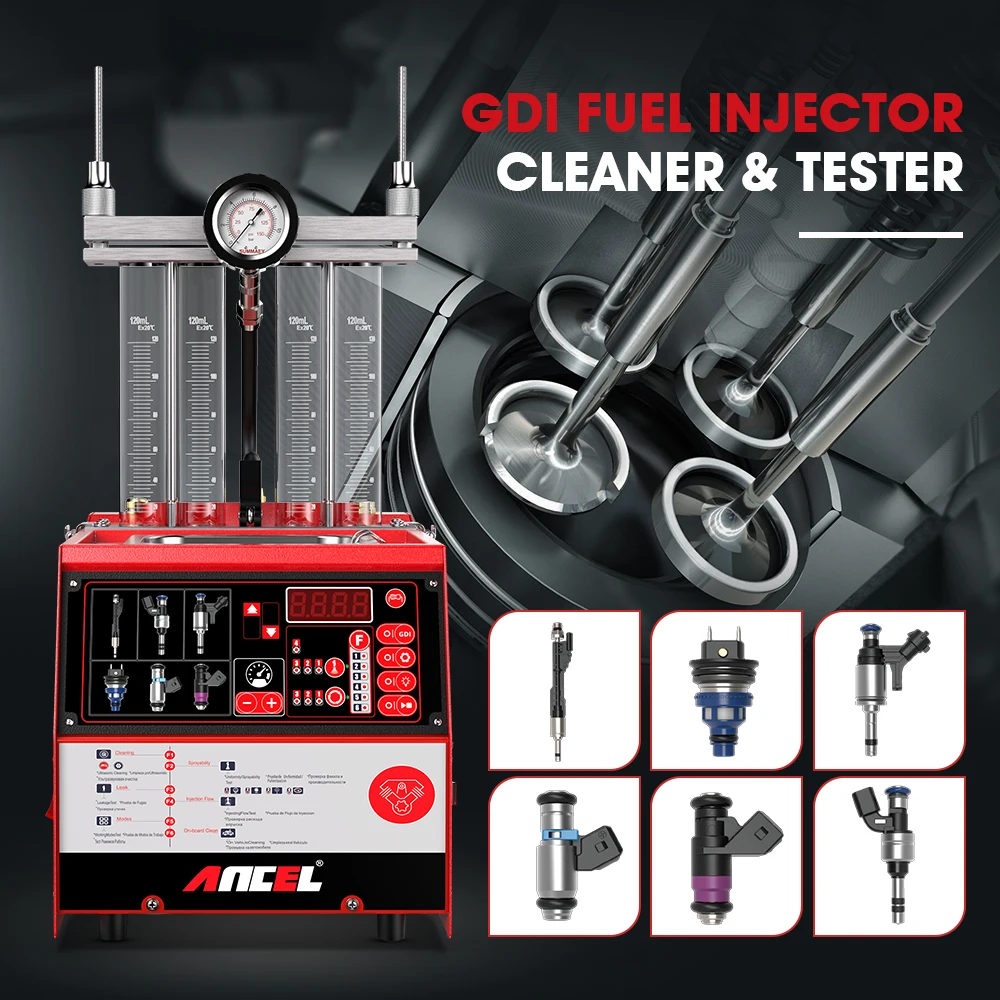

Ancel AJ400 GDI Injector Cleaner & Tester

ANCEL AJ400 is a professional fuel injector cleaner and tester combining ultrasonic cleaning technology with microprocessor-controlled fuel pressure testing. Its structural design makes injector disassembly/reassembly easier, improving workshop efficiency.

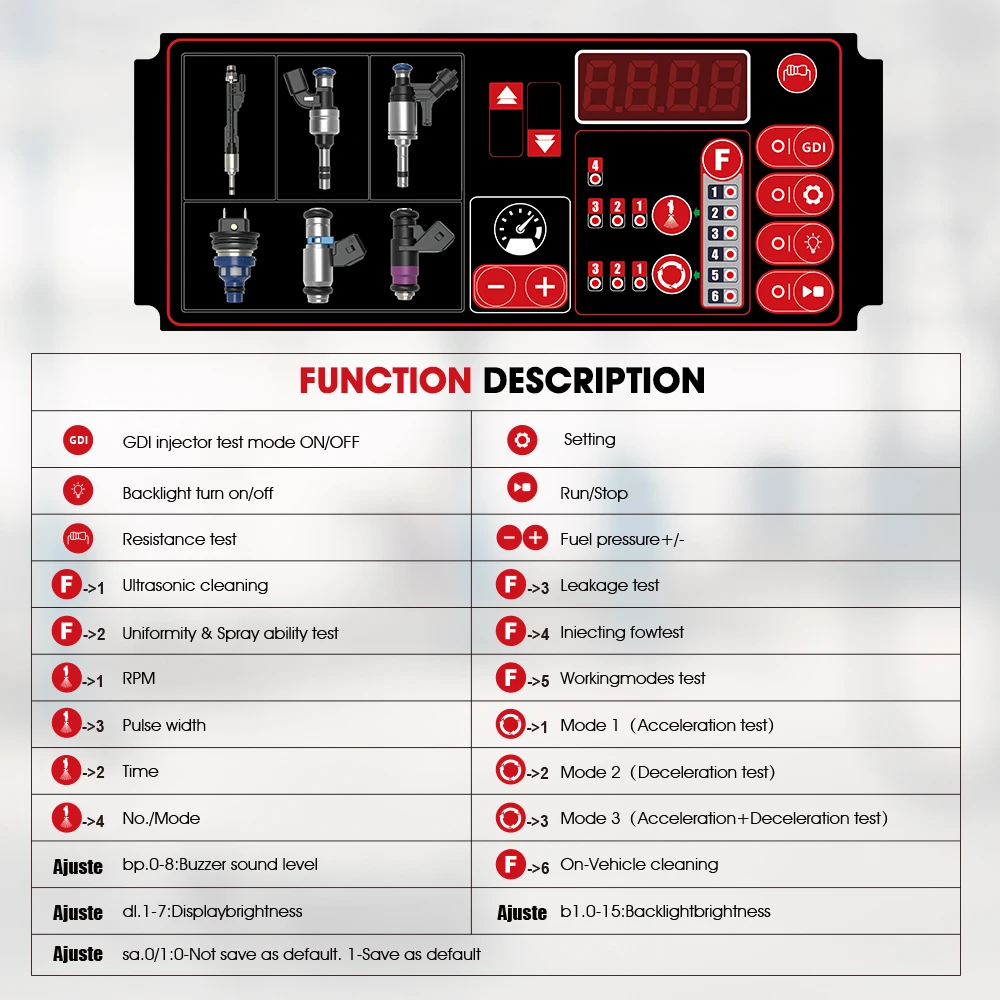

Main Functions:

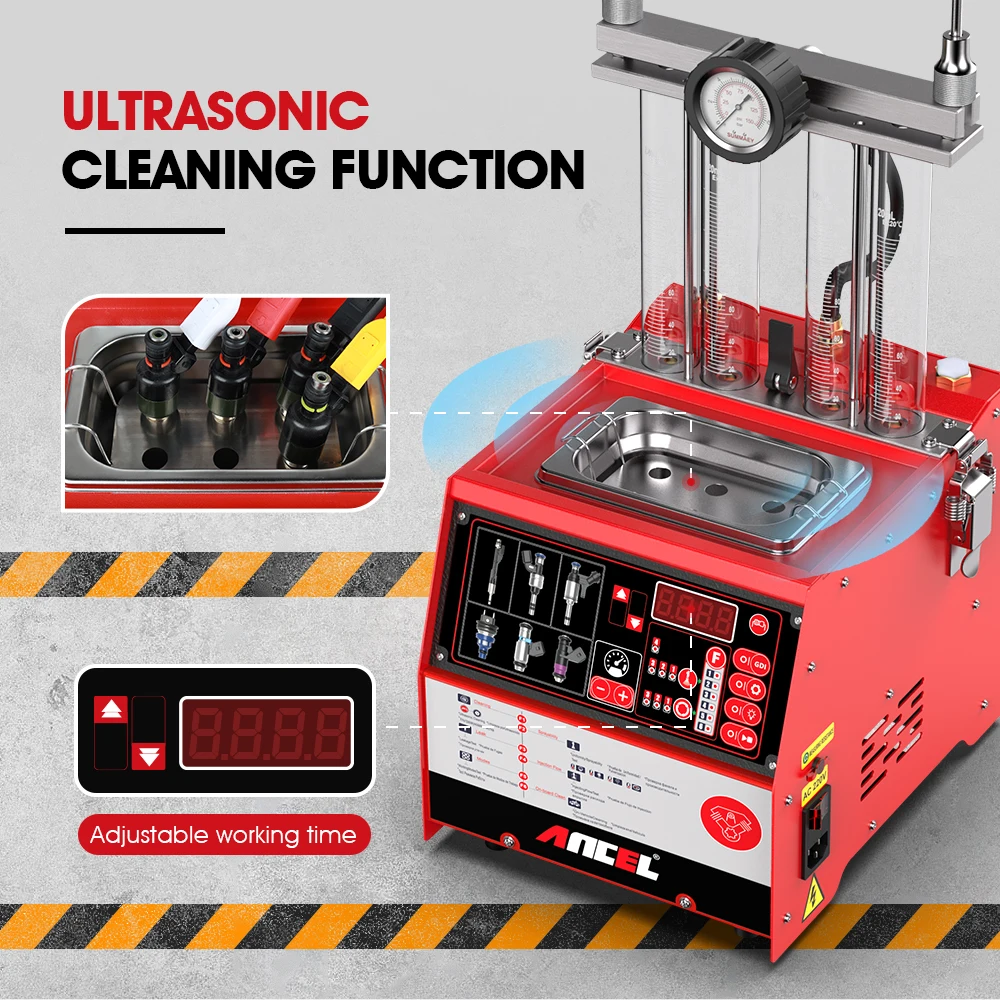

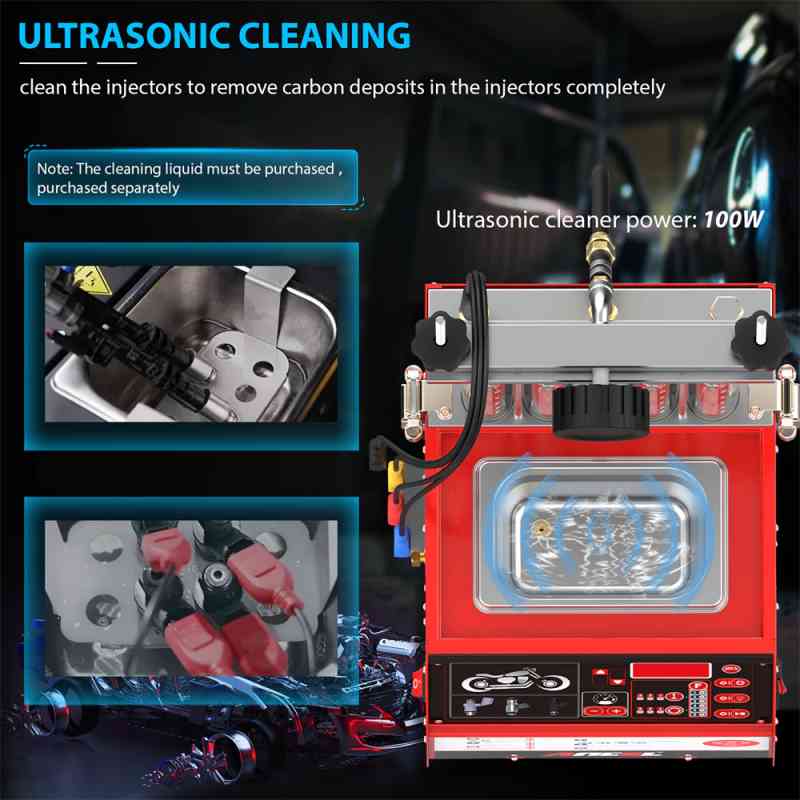

• Ultrasonic Cleaning: Removes carbon deposits thoroughly.
• Resistance Test: Measures injector resistance accurately.

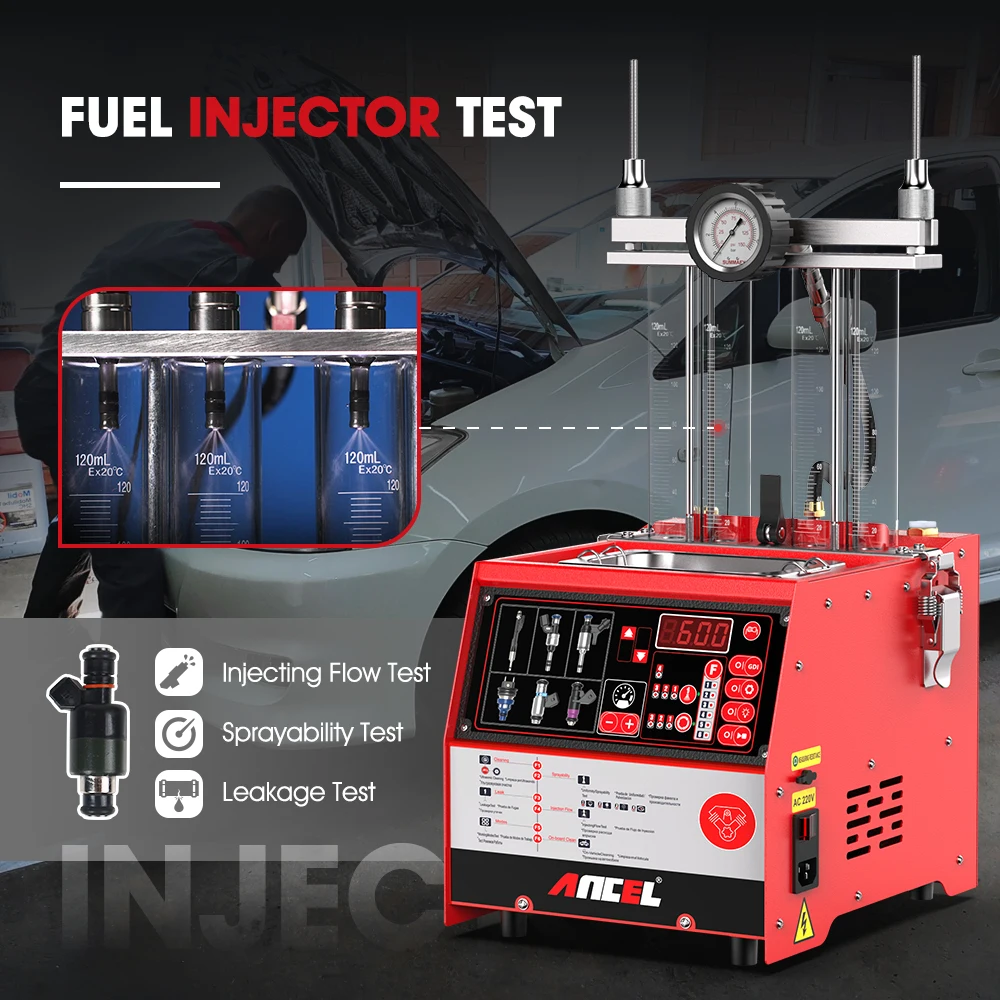

• Spray Pattern Test: Monitors injection volume & spray quality under backlight.
• Leakage Test: Checks injector sealing under fuel pressure.
• Flow Test: Measures injection quantity over a 15-second cycle.
• Working Condition Simulation: Tests injectors under RPM up to 9900.
• On-Vehicle Cleaning: Supports cleaning injectors directly on car.
• Low Resistance Injector Testing: Supports injectors as low as 1Ω.
• Multi-Settings: Adjustable buzzer, display brightness, backlight.

Technical Specifications:

• Power Supply: AC 220V ±10% 50/60Hz or AC 110V ±10% 60Hz
• Input Power: 230W
• Ultrasonic Cleaning Power: 100W
• Resistance Test Accuracy: 0.1Ω
• RPM Simulation: 100–9900 rpm (step 10 rpm)
• Injection Time Range: 5–300s (step 5s)
• Pulse Width: 0.1–25ms (step 0.1ms)
• Fuel Tank Capacity: 2000ml
• Working Pressure: 0–7 bar
• Operating Temp: -10 ~ +40 ℃ | Humidity: <85%

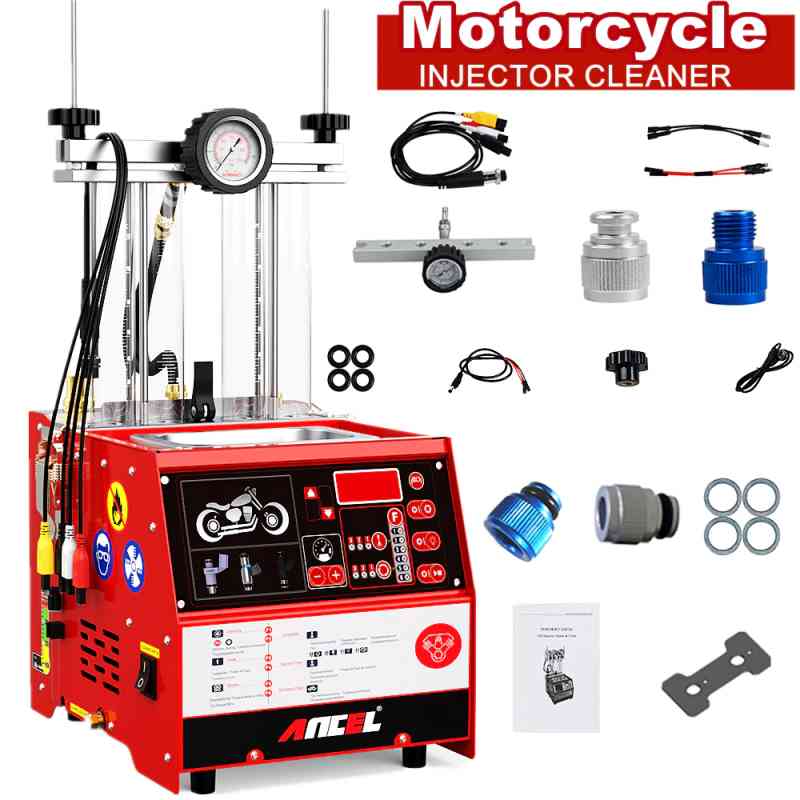

Package Includes:

• Vice adapter, fuel separator stopper, universal & threaded GDI adapters
• Main pulse cable & signal cable
• Fuel separator & extension rods
• Handwheel wrench, power cable, resistance test cable
• Injector shims, O-rings, user manual

Product Info:

• Type: Fuel Injector Tester
• Model: AJ400
• Brand: ANCEL
• Origin: Guangdong, China
• Warranty: 1 Year
• Weight: 12 kg
• Plug Type: EU/US Plug
