MST-9000+ Automotive Sensor & ECU Simulator | Alat Uji Sensor Mobil Profesional

Auto MST 9000 + US Plug & MST-08 — Automotive ECU Simulator & Sensor

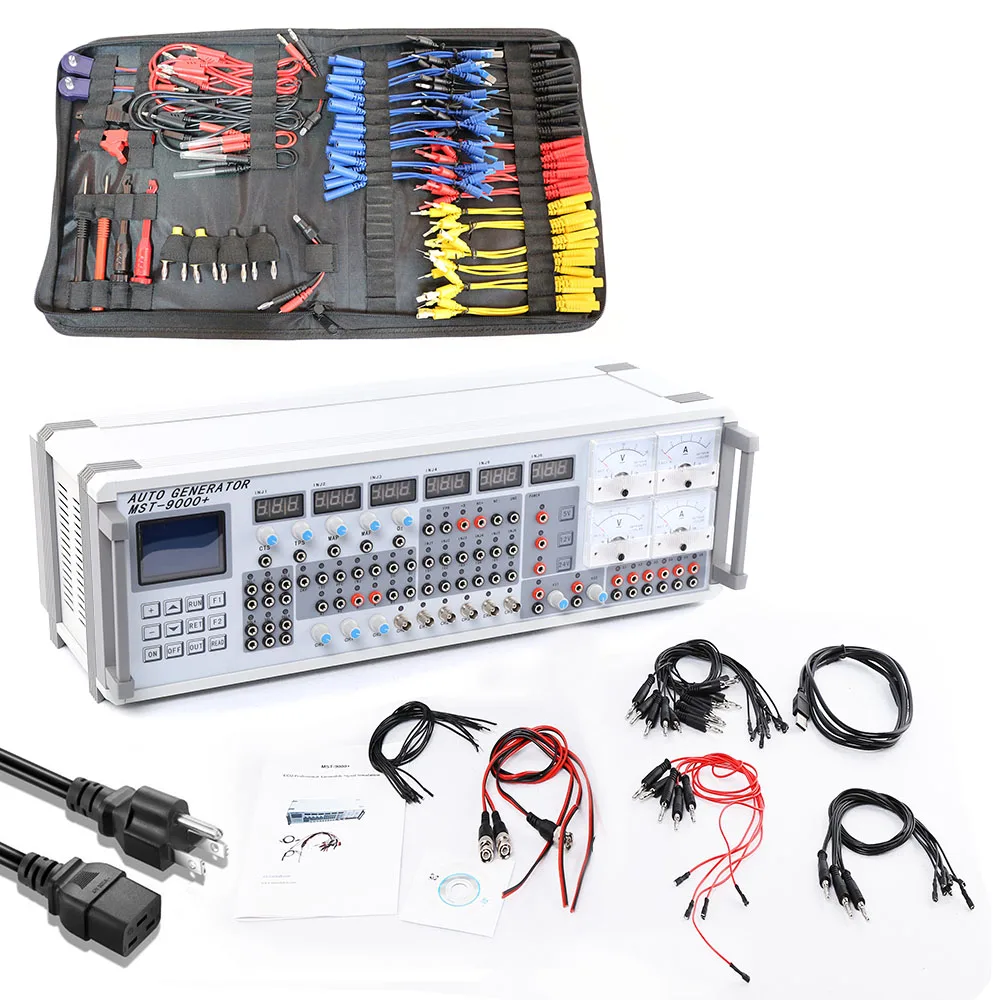

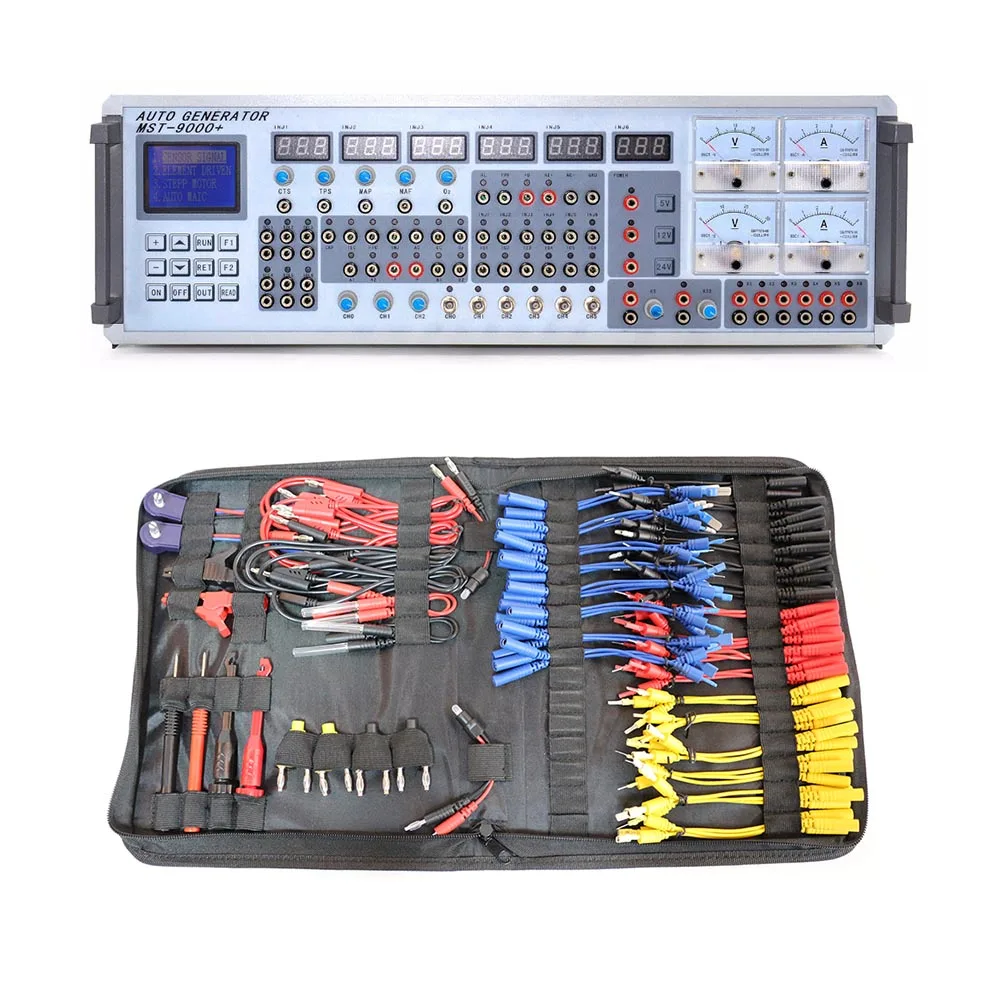

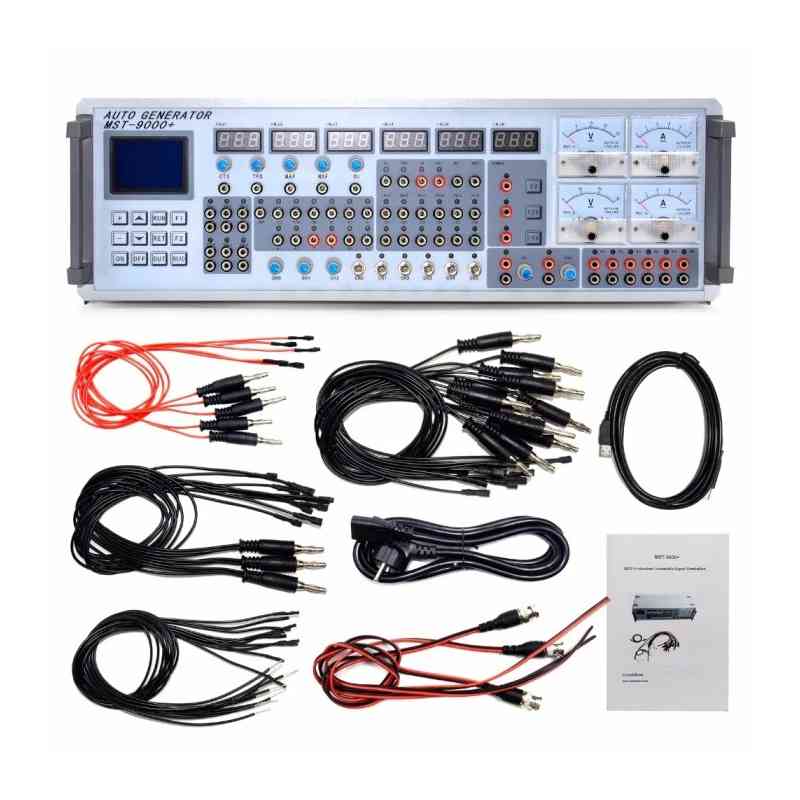

Specifications MST 9000 +

The automotive sensor signal simulation tool is highly useful for professional technicians during car ECU repair & programming. The MST-9000+ is the upgraded version of MST-9000 with more stable functions and improvements. After years of R&D, it has become the ideal choice for many workshops and automotive training schools.

General Features

• Compatible with all car brands.
• Automotive ECU repair & sensor simulator tester MST-9000+ (new version).
• Dynamic diagnosis for car sensors: engine, transmission, ABS, A/C, IMMO, etc. Suitable for ECU repair, teaching, and automotive R&D.
• Applicable to multi-brand vehicles from Asia, Europe, and America.

Enhancements in MST-9000+

• Improved knock sensor simulation with KS1 & KS2 output ports.
• Additional reserved port X1 for customer-defined simulation signals.

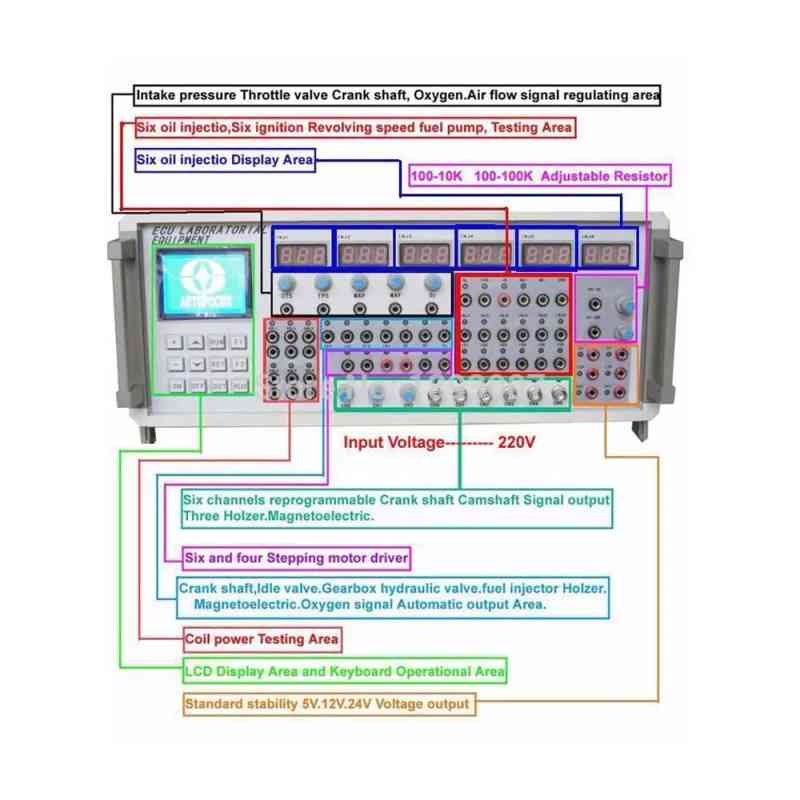

Main Functions

• Engine control system setup with independent crankshaft signal output for various ECU-based models.
• Automatic transmission input and output shaft signal simulation.
• Direct waveform data editing and writing.
• Engine signal outputs (Hall, magnetic, optical).
• ABS wheel signal output (3/4 channels).
• PCB current testing.
• EGR solenoid valve drive & carbon cleaning solenoid drive.
• Tachometer and blower control module drive.
• Idle valve and stepper motor (4/6-wire) drive.
• Injector driver, ignition module, and ignition coil simulation.
• Parking sensor (ultrasonic) probe simulation.
• Simulation of various actuators (A/C relay, pump relay, radiator fan relay, audio output, power amplifier driver).
• Simulation of hydraulic, shift, and quality control valves.
• Fuel injection pulse width measurement.
• Central lock server simulation & anti-theft resistance simulation.
• User extension functions.

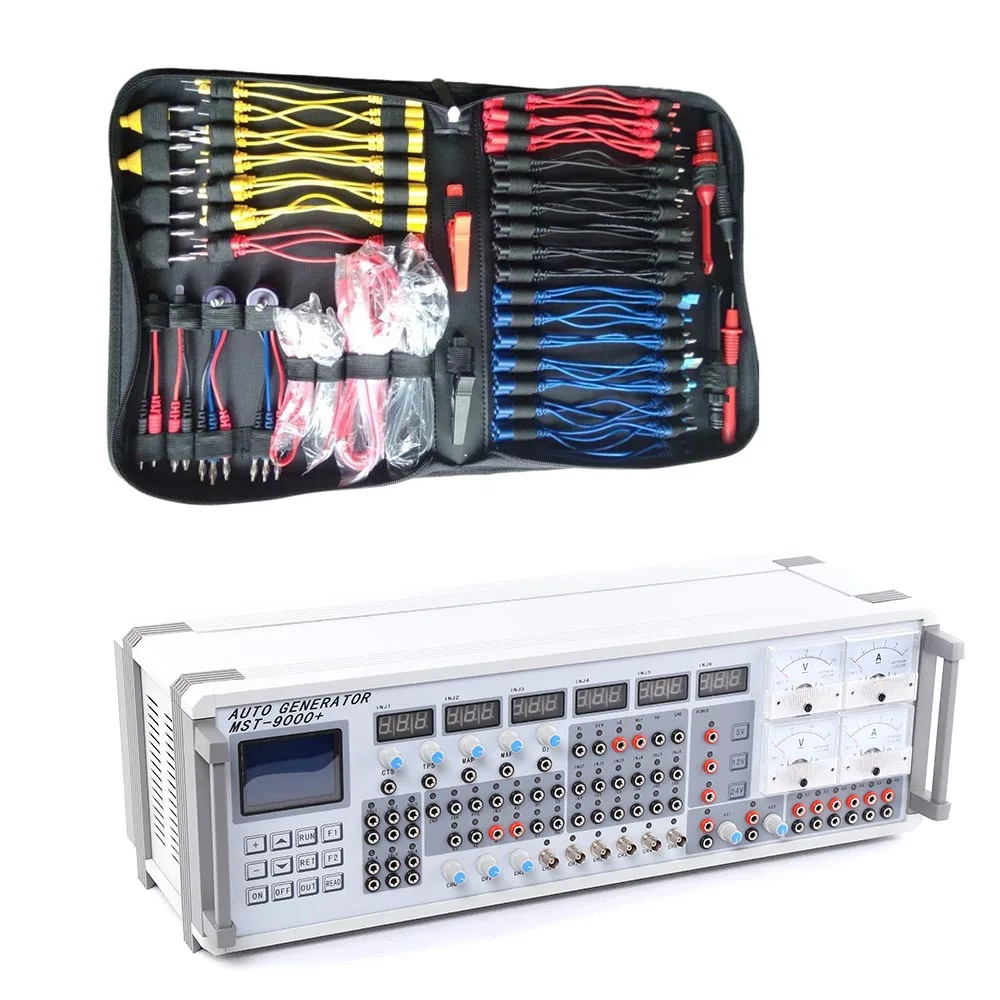

MST-08 (Circuit Test Cable Kit)

How to use the test cable kit:

• Disconnect the electronic connector of the vehicle.
• Select the proper adapter connector and connect the signal cables.
• Connect the signal cables in series between the electronic connectors.
• Attach the test instrument (probe/pen) and plug into the switch cable connection port.

Features of the MST-08 Cable Kit

• A complete wiring inspection tool kit.
• Helps technicians adjust and troubleshoot vehicle issues quickly and accurately.
• Variable resistor for simulating coolant temperature sensor or valve signals to avoid unnecessary part replacements.
• Full set of cables & adapters in a case, suitable for European, American, and Japanese terminals.
• Equipped with 2 LED sets for monitoring Hall effect, photoelectric signals, nozzles, transmission solenoid valves, and control signals.
• SRS connector provided for simulating airbags and seatbelt devices to avoid accidents or misjudgment.

Practical Functions

• Back-probing without damaging the circuit — reducing corrosion and avoiding impedance increase.
• Can be used with automotive multimeters or as oscilloscope probe extension — more practical and faster testing.
• Current measurement without cutting wires — connect directly with test lines.
• Variable resistor can simulate sensor signals (e.g., coolant temperature) to ECU to avoid unnecessary replacement of new parts.
• 2 LED sets to check Hall effect, photoelectric signals, nozzles, solenoid valves, and transmission shift signals.
• SRS connector enables safe simulation of airbag and seatbelt devices during testing.
• Diverse cable set suitable for European, American, and Japanese terminals for high compatibility and ease of use.
