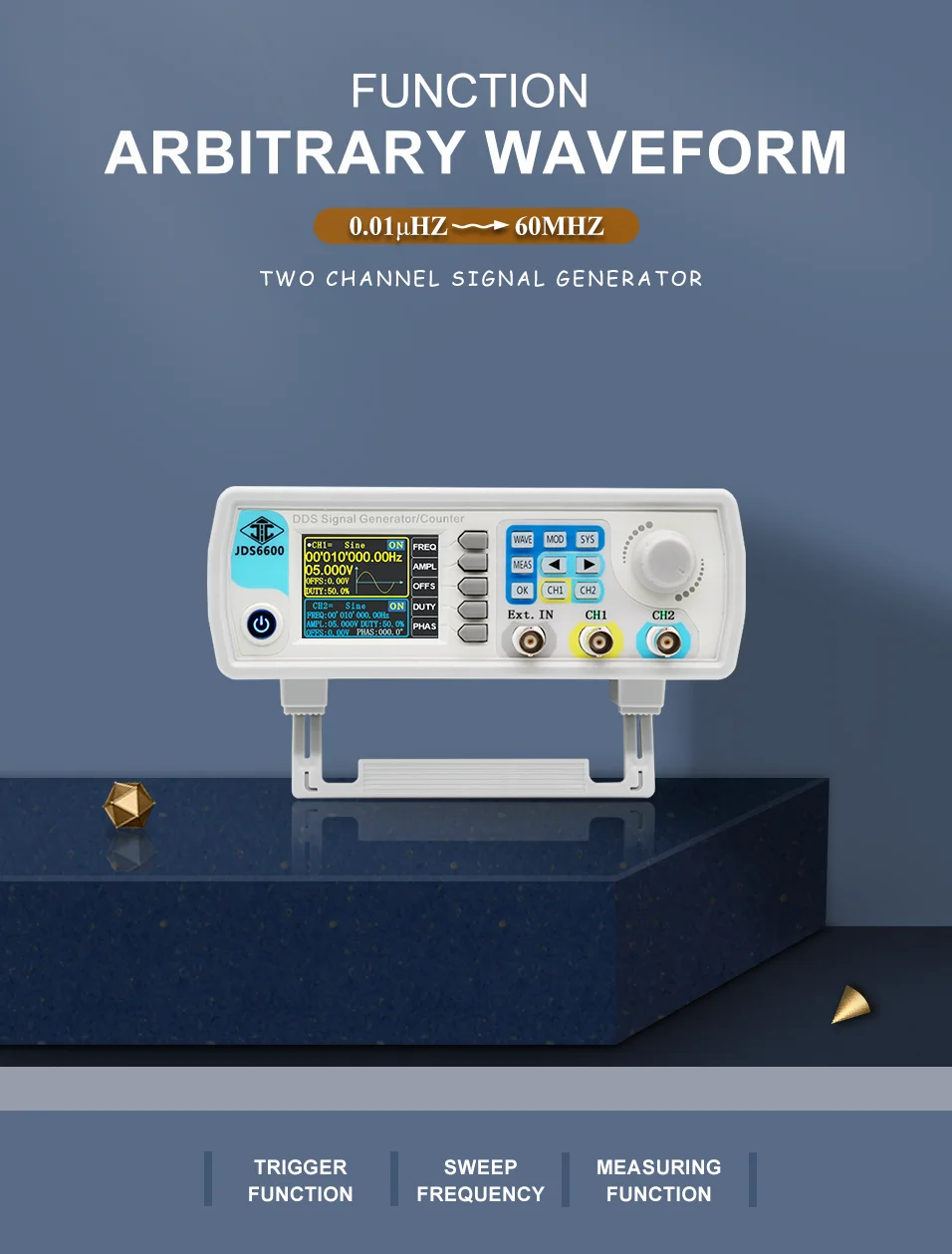

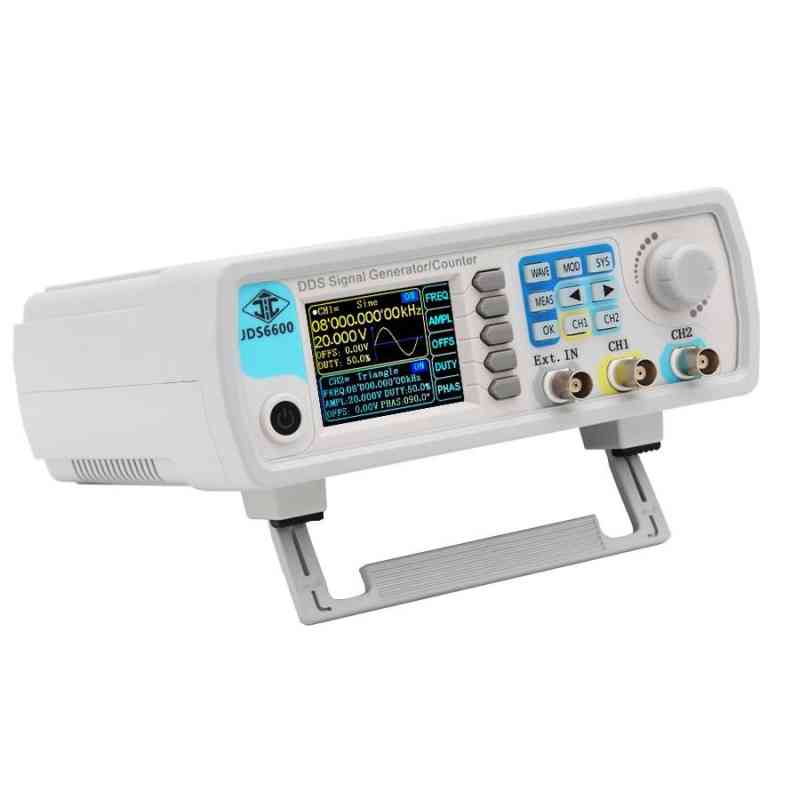

JUNTEK 15/30MHz JDS6600 DDS Function Signal Generator
$245.45
1 Item
Location:
Indonesia
Shipping Method:
Payment Method:
Compatibility:
Guarantee proper compatibility according to the listed part numbers and specifications.
Warranty & Returns:
7-day warranty after installation. Return shipping cost is paid by the buyer. If a return shipping label provided by us is used, the cost will be deducted from the refund amount.
Safe Transaction:
Protected by the Directorate of Consumer Protection – Ministry of Trade, RI.
- mpn
- JDS6600
Dimenssion
0cm x 0cm x 0cm
Weight
5kg
Condition
New
Description
JDS6600 Series Dual-channel Function Signal Generator
The JDS6600 Series Dual-channel Function Signal Generator is a professional-grade testing instrument designed for engineers, laboratories, research, and teaching purposes. It integrates multiple functions such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter, and Frequency Meter. Built with advanced Direct Digital Synthesizer (DDS) technology, it ensures stable, precise, pure, and low distortion signals, making it a reliable tool for a wide range of electronic applications.
Key Features

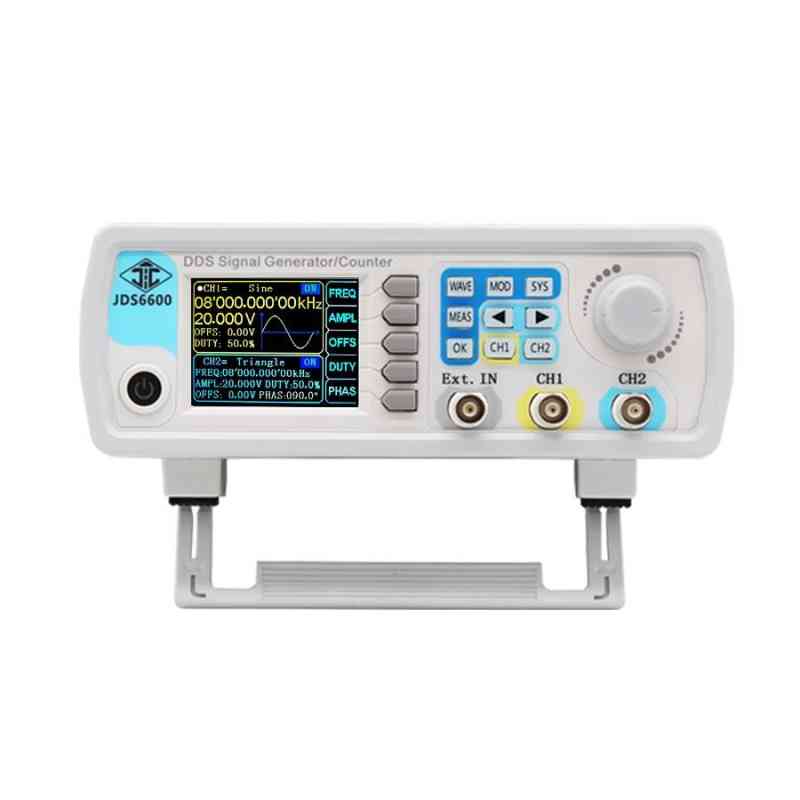

- 2.4" TFT LCD Display (320×240 resolution) – Displays parameters of both CH1 and CH2 simultaneously, making real-time monitoring easy.
- Custom Waveform Reproduction – Supports up to 60 groups of arbitrary waveform storage, each with 2048×14bit depth.
- Soft Silicone Keys – More sensitive and convenient compared to traditional patch keys, ensuring smooth operation.
- Duty Cycle Control – Each channel can be adjusted independently with a fine resolution of 0.1%.
- Digital Signal Output – CMOS output range 0–10V, ideal for digital electronics testing.
- High Sampling Rate – 266MSa/s with 14-bit vertical resolution for superior accuracy.
- Dual Channel Output – Supports same or different function signals simultaneously; phase difference adjustable between 0–359.9°.
Advanced Functions
- Trigger Functions – 4 modes available (sine, square, sawtooth, arbitrary) to generate pulse trains; cycle adjustable from 0–1,048,575.
- Pulse Width Adjustment – Range from 25ns to 4000s, offset 0–120%, amplitude adjustable 0–10V with 0.01V accuracy.
- Arbitrary Waveform Drawing – Free PC software included; supports waveform creation, secondary development, and remote control via communication protocol.

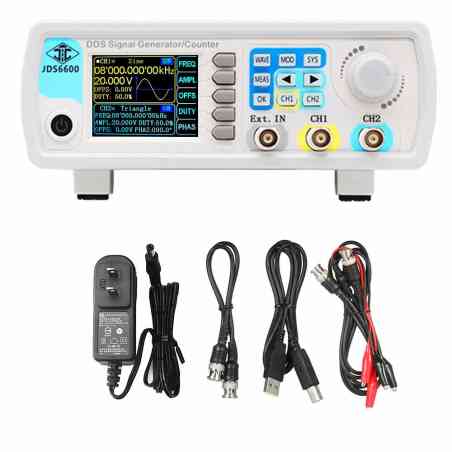

Package Includes:
- 1× JDS6600 DDS Signal Generator
- 1× Power Adapter (Input: 100–240V, 50/60Hz | Output: 5.0V/0.2A)
- 1× BNC-BNC Cable
- 1× USB Data Cable
- 2× BNC-Clip Cables
