AUTEL PS100 Electrical System Diagnostics Power
$123.95
1 Item
Location:
Indonesia
Shipping Method:
Payment Method:
Compatibility:
Guarantee proper compatibility according to the listed part numbers and specifications.
Warranty & Returns:
7-day warranty after installation. Return shipping cost is paid by the buyer. If a return shipping label provided by us is used, the cost will be deducted from the refund amount.
Safe Transaction:
Protected by the Directorate of Consumer Protection – Ministry of Trade, RI.
Brand
Autel
- mpn
- PS100
Dimenssion
0cm x 0cm x 0cm
Weight
0kg
Condition
New
Description

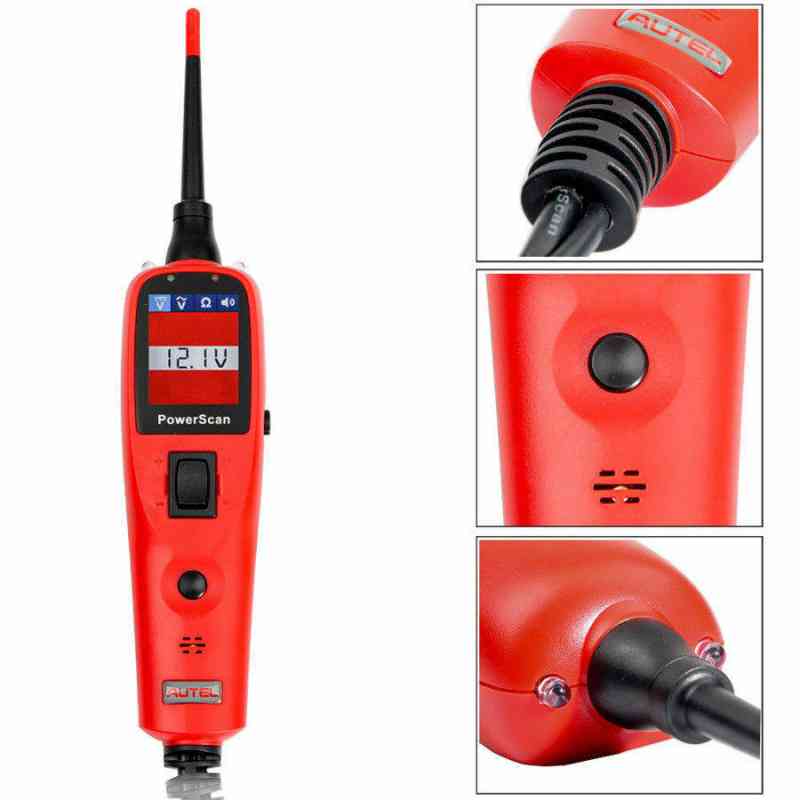

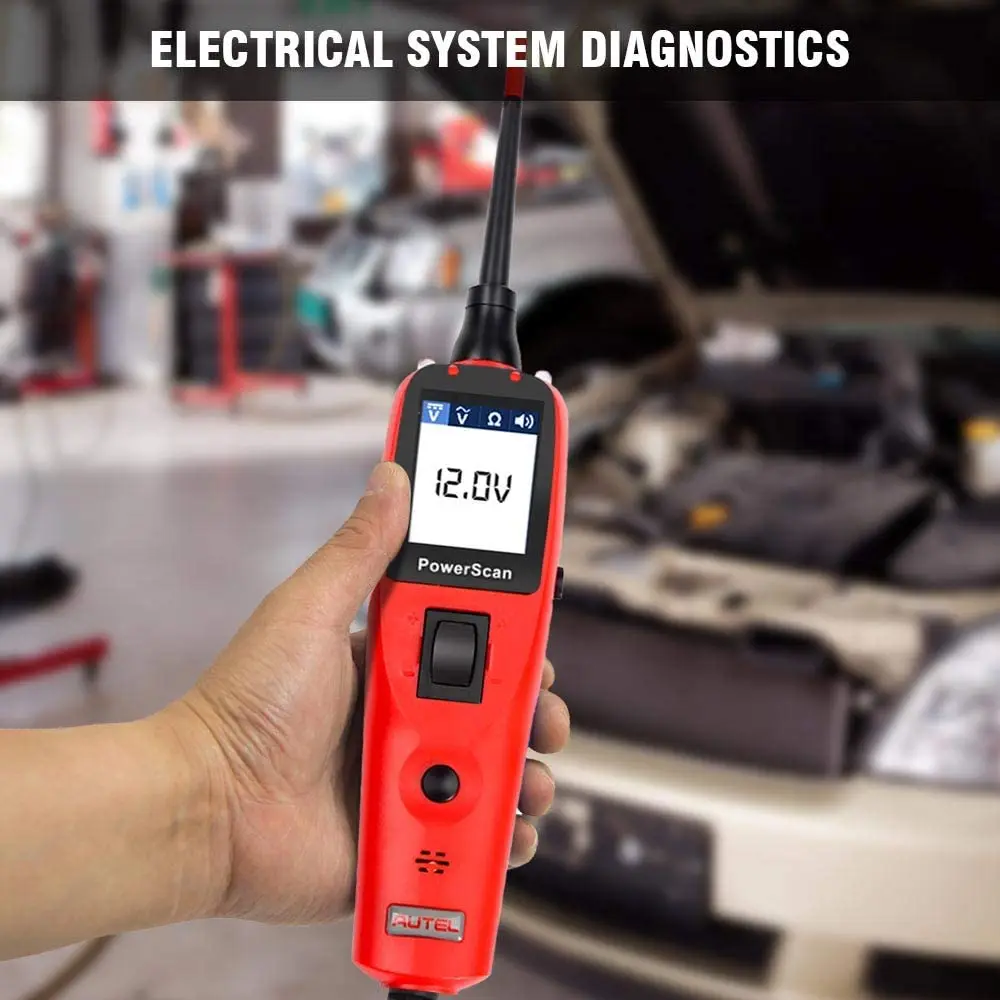

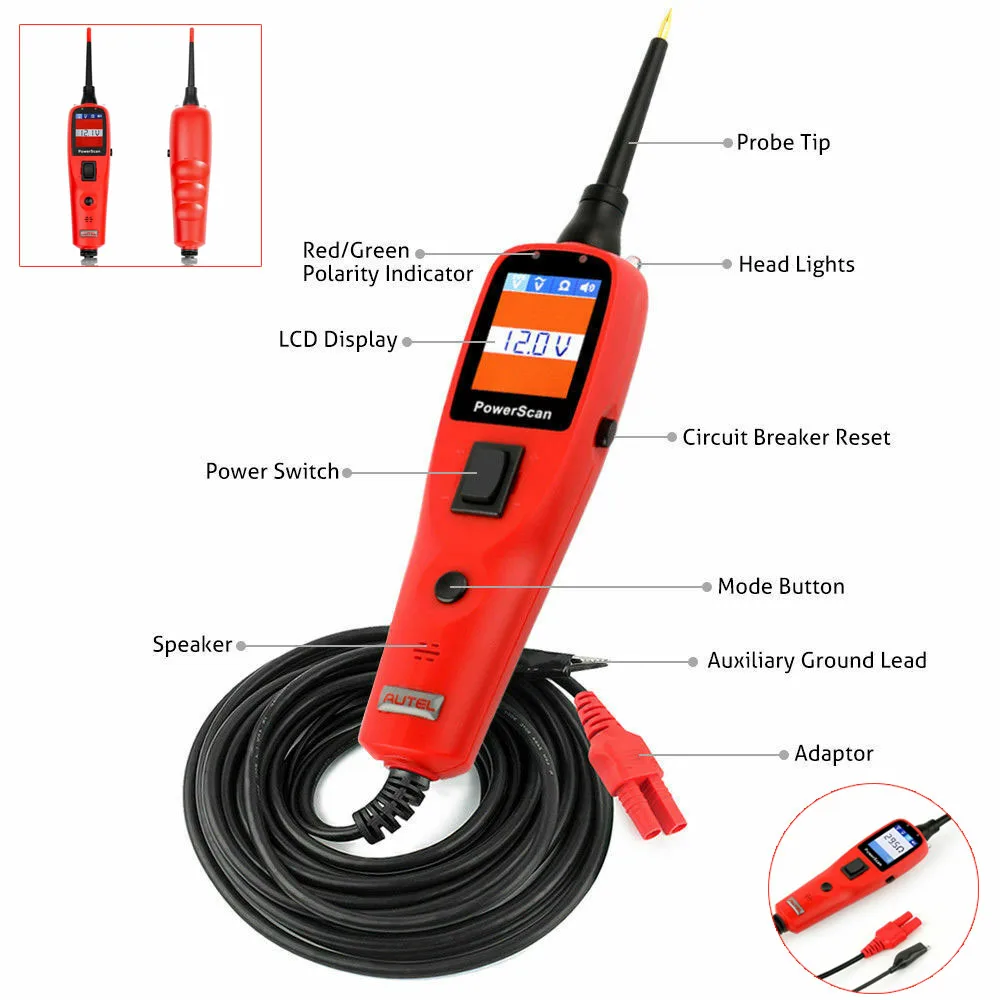

AUTEL PowerScan PS100 – Automotive Electrical Circuit Tester 12V / 24V
Autel PowerScan PS100 is a professional automotive electrical system diagnostic tool designed to perform a wide range of electrical services, including power injection, ground testing, polarity checking, continuity testing, and component activation.
Main Functions
- Power injection for circuit testing
- Ground (earth) testing and polarity checks
- Continuity testing of wires and components
- Component activation for electrical parts
- Instant identification of positive, negative, and open circuits
Easy-to-Read AVOmeter
The PS100 features a built-in AVOmeter that allows technicians to read voltage, current, and resistance values directly at their fingertips. This enables faster and more accurate electrical diagnostics.
Instant Power & Ground Control
With the power flip switch, users can instantly supply power or ground to electrical components such as cooling fans, relays, and solenoids without disconnecting the vehicle wiring.
- Instant hot and ground lead output
- Direct activation of electrical components
- Greatly reduces troubleshooting time
Key Features of Autel PowerScan PS100
- Quickly detects poor ground connections
- Helps trace and locate short circuits without blowing fuses
- Direct continuity testing of switches, relays, and diodes
- Built-in circuit breaker protection
- Integrated LED flashlight for working in dark areas
- Audio tone indicator for menu-free operation

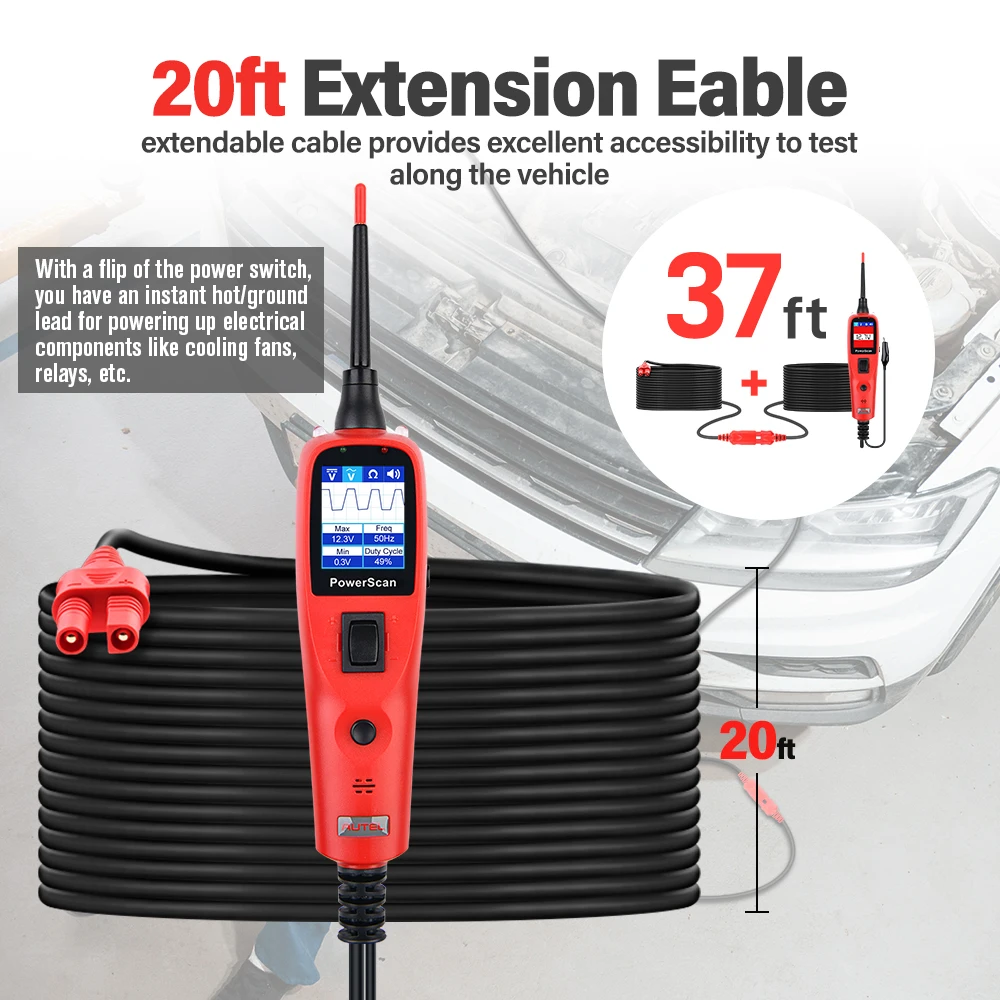

- 20-foot extension cable for excellent accessibility
- Extremely easy to use and highly reliable
Technical Specifications
- Display: TFT color screen (160 × 128 dpi)
- Operating Voltage: 12V / 24V (powered by vehicle battery)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Dimensions: 126mm × 46.5mm × 35mm
- Net Weight: 0.105 kg (0.23 lb)
- Gross Weight: 0.726 kg (1.6 lb)

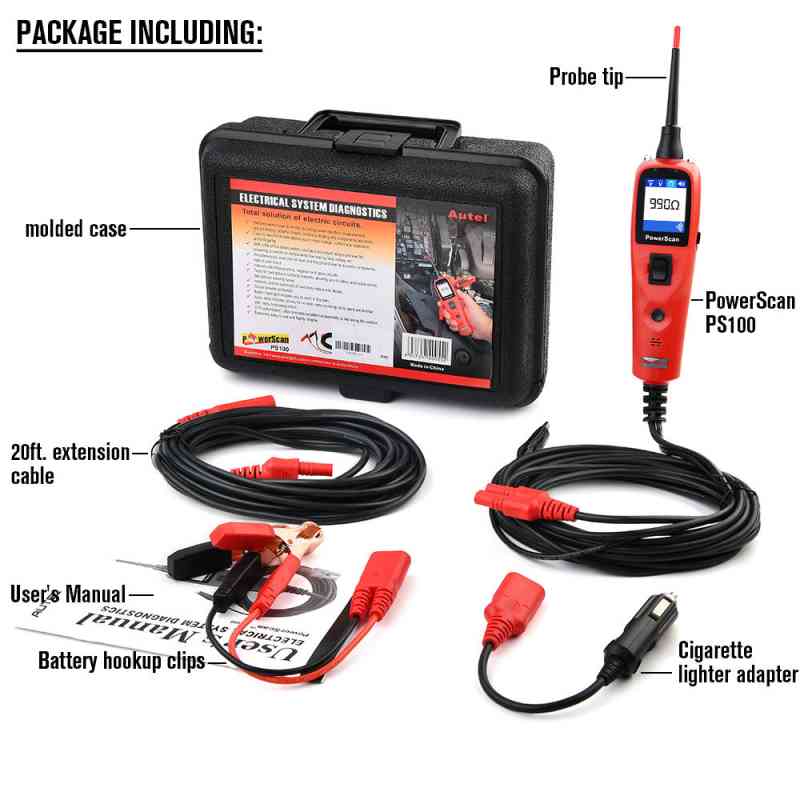

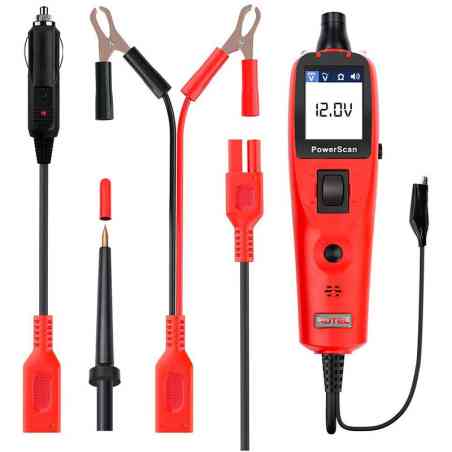

Packing List
- 1 × Autel PowerScan PS100
- 1 × Blow-Molded Hard Case
- 1 × 20-ft Extension Cable
- 1 × Probe Tip
- 1 × Battery Hook-Up Clips
- 1 × Adapter Plug
- 1 × User Manual
