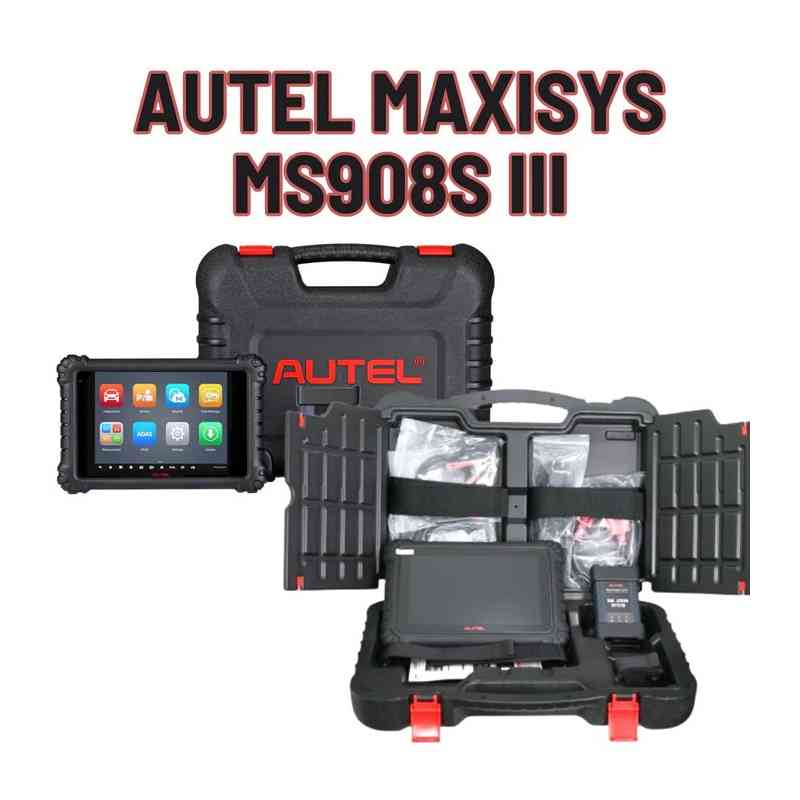

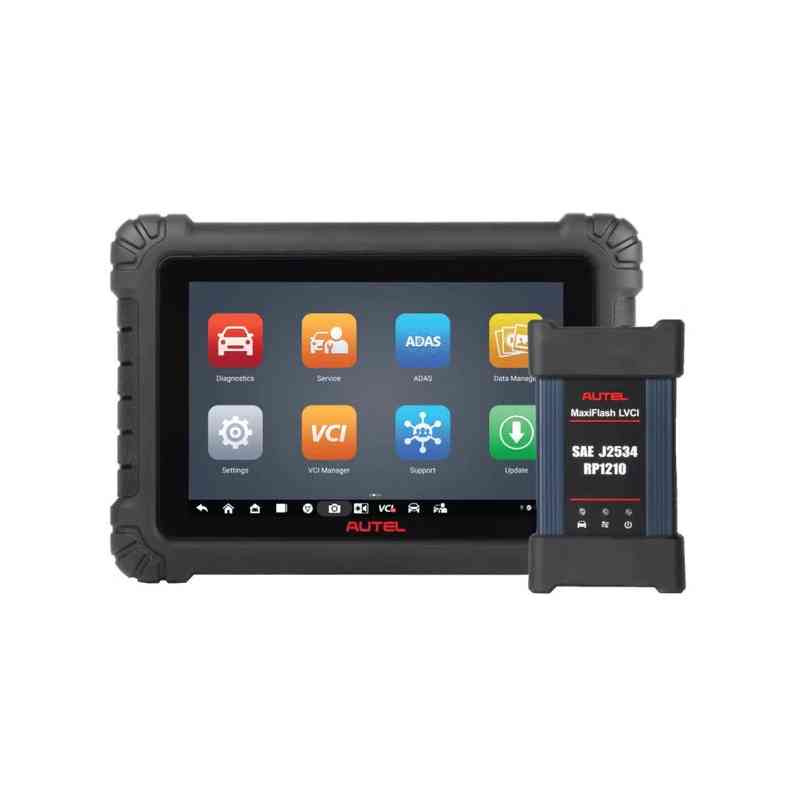

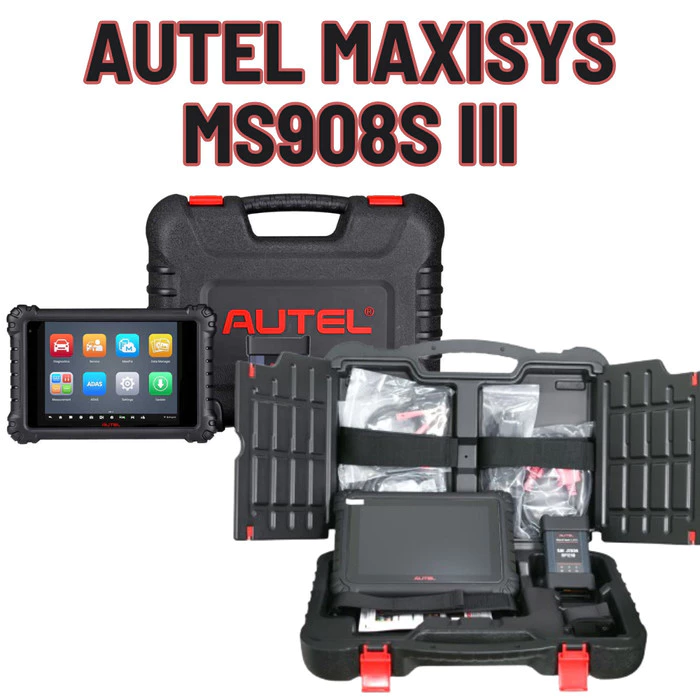

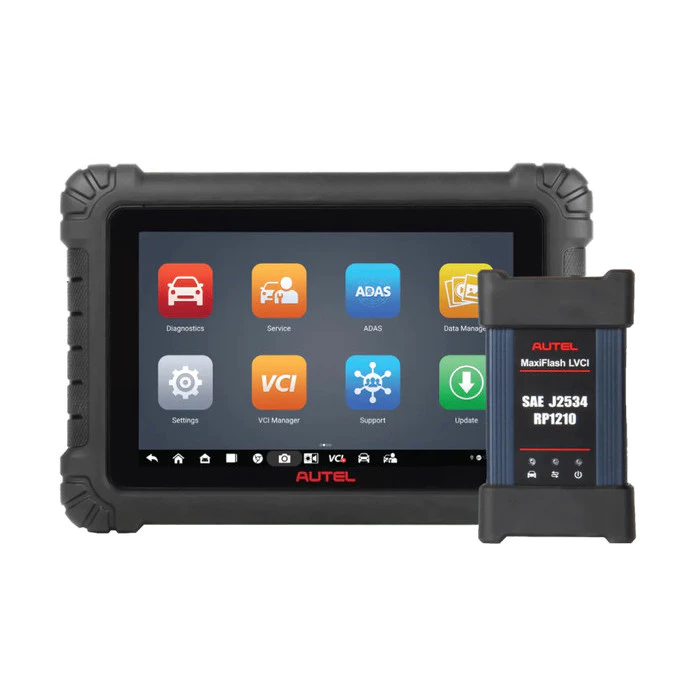

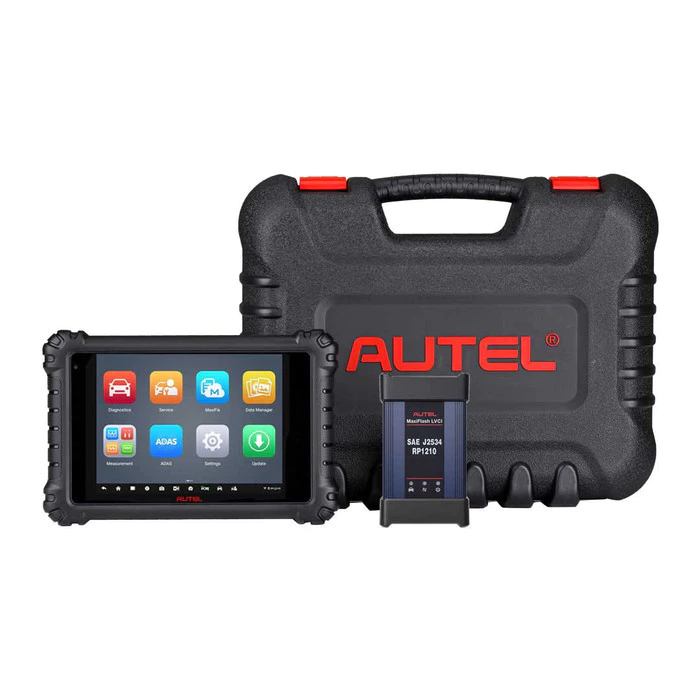

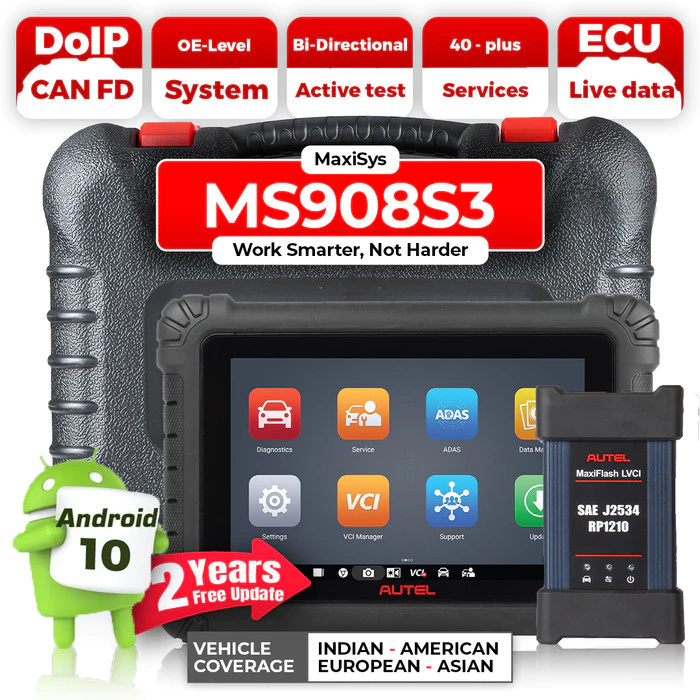

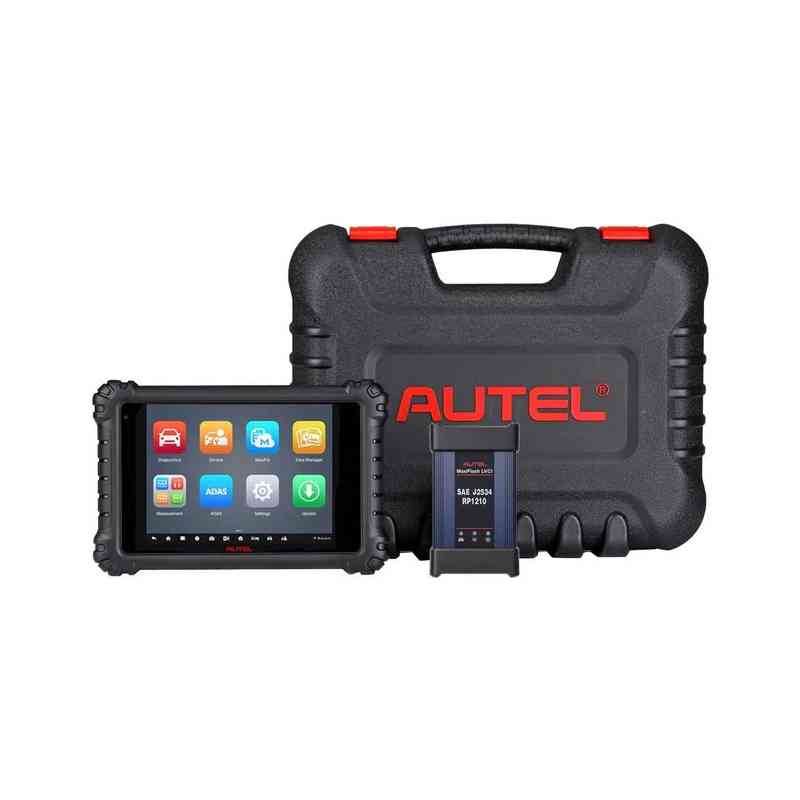

Autel Maxisys MS908S III MS908S3 Online Programming Full System Scanner, ECU Coding, ABS/SRS/TPMS

Professional 10.1-Inch Full System Car Diagnostic Scanner

This professional automotive diagnostic scanner features a large 10.1-inch high-resolution capacitive touchscreen with a 1920 × 1200 display. Powered by an Octa-core processor and running on Android 10, it delivers extremely fast, smooth, and efficient navigation. Designed for professional workshops and technicians, it offers comprehensive diagnostics, advanced service functions, and OE-level system coverage.

The scanner provides extensive vehicle coverage for U.S., Asian, and European models, leading in vehicle model and function support. It supports complete diagnostics including fault code reading, live data streaming, ECU information access, bi-directional active tests, and special functions. With support for the latest communication protocols such as DoIP and CAN FD, diagnostics are faster and more accurate.

Main Features & Functions

• 10.1-inch high-resolution capacitive touchscreen (1920 × 1200)
• Android 10 operating system with Octa-core processor
• Extensive coverage for U.S., Asian, and European vehicles
• OE-level diagnostics for all electronic control systems
• Read & clear codes, live data, ECU info, and active tests
• 40+ built-in service and maintenance functions
• Supports DoIP and CAN FD communication protocols
• AUTO SCAN 2.0 for faster full-system diagnostics
• Remote Expert support with Bluetooth headset communication
• One-touch report sharing via QR code, SMS, and email
• One-touch technical support from professional engineers

Why Choose This Diagnostic Scanner

• Large, sharp display for comfortable diagnostics
• Fast and stable performance with Octa-core CPU
• Advanced OE-level diagnostic capabilities
• Supports the latest vehicle communication standards
• Ideal for professional workshops and advanced technicians

Technical Specifications

• Operating System: Android 10.0
• Processor: Octa-core Processor
• Memory: 4 GB RAM & 128 GB On-board Memory
• Display: 10.1-inch LCD capacitive touchscreen (1920 × 1200)
• Camera (Rear): 13 MP
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 (2× Type-A & Mini USB), Bluetooth 5.0
• Storage: SD Card support up to 64 GB
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio: Microphone, Dual Speakers, 3.5 mm Headset Jack
• Battery: 11,600 mAh 3.85 V lithium-polymer
• Charging: 12 V DC power supply
• Input Voltage: 12 V / 3 A Adapter
• Operating Temperature: 0 – 50 °C
• Storage Temperature: -10 – 60 °C
• Dimensions: 311.1 × 216.0 × 39.9 mm
• Weight: 1.71 kg

Supported Protocols

• DoIP, CAN FD, PLC J2497
• ISO-15765, SAE-J1939
• ISO-14229 UDS
• SAE-J2411 Single Wire CAN (GMLAN)
• ISO-11898-2 / ISO-11898-3
• SAE-J2819 (TP20), TP16
• ISO-9141, ISO-14230
• SAE-J2610 (Chrysler SCI)
• UART Echo Byte
• Honda Diag-H, GM ALDL
• Ford UBP, Nissan DDL UART
• BMW DS1 / DS2
• KW81, KW82
• SAE J1708, SAE-J1850 PWM & VPW
