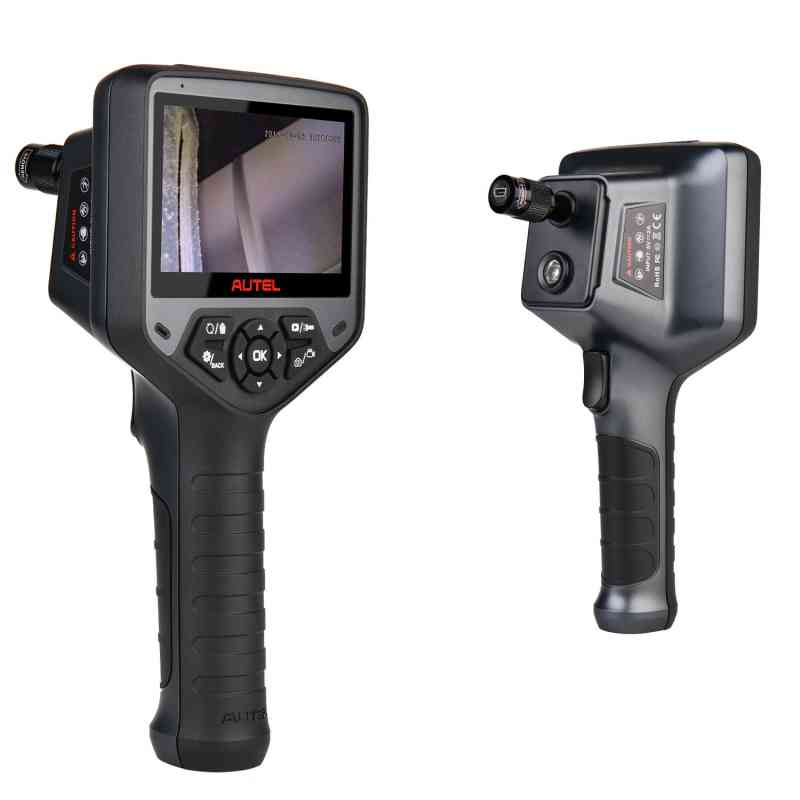

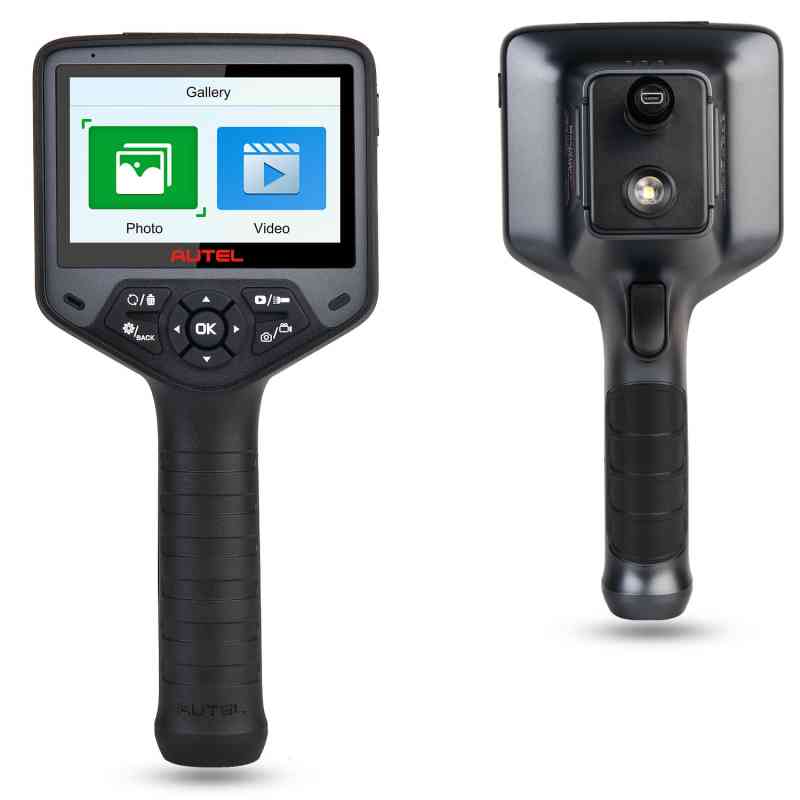

AUTEL MV480 8,5MM Digital Inspection Videoscope MaxiVideo

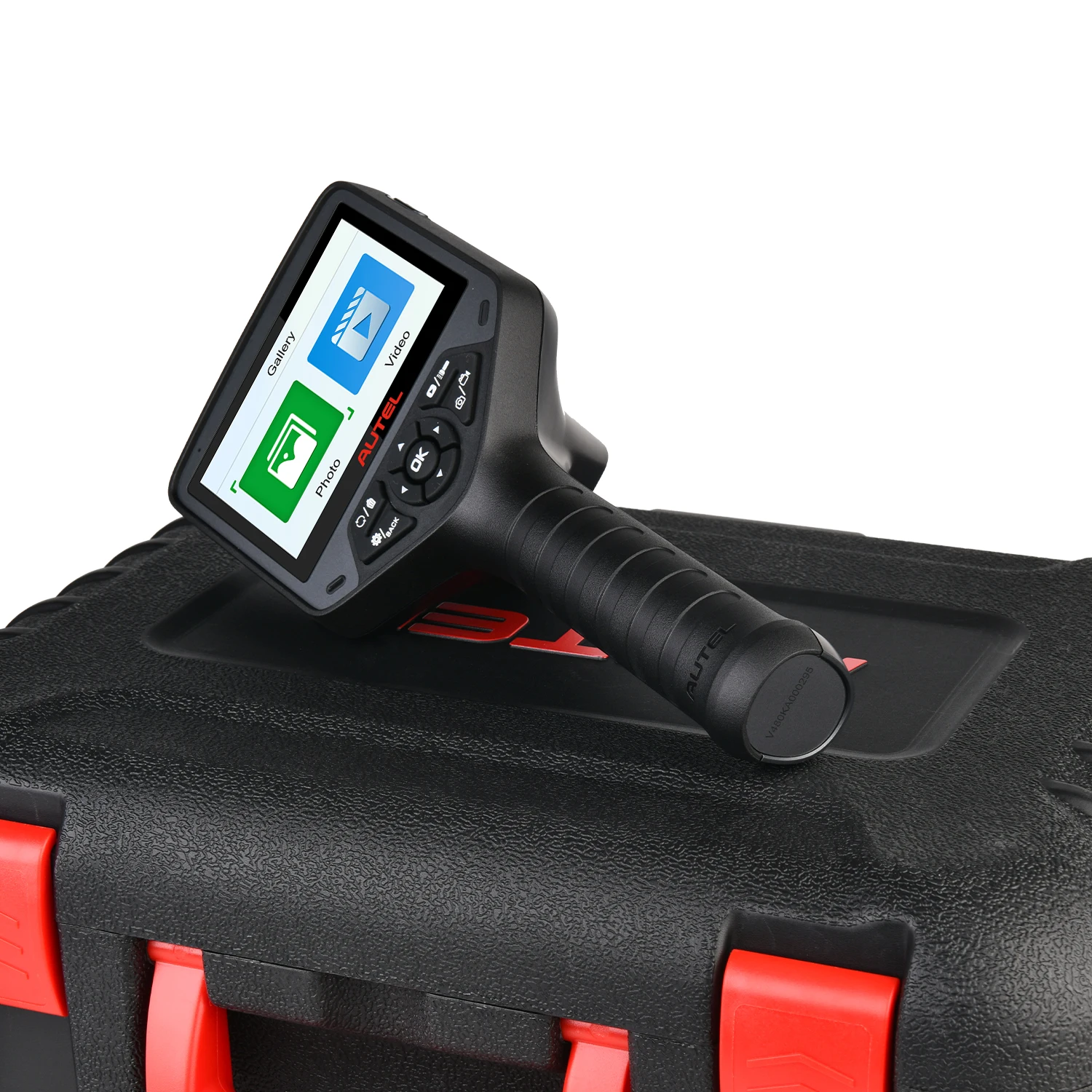

AUTEL MaxiVideo MV480 – Digital Inspection Videoscope

The Autel MaxiVideo MV480 is the next-generation digital videoscope, designed for safe, fast, and cost-effective inspection of hard-to-reach areas. Equipped with a semi-rigid flexible cable, 10-level adjustable LED lighting, and dual front and side cameras, the MV480 is an ideal solution for inspecting engines, machinery, facilities, and infrastructure.

Featuring high-definition imaging, a large full-color LCD screen, and a powerful built-in rechargeable battery, the MaxiVideo MV480 delivers professional-grade visual diagnostics for automotive technicians, maintenance professionals, and industrial users.

Key Features

• High-resolution image and video capture (1920 × 1080)

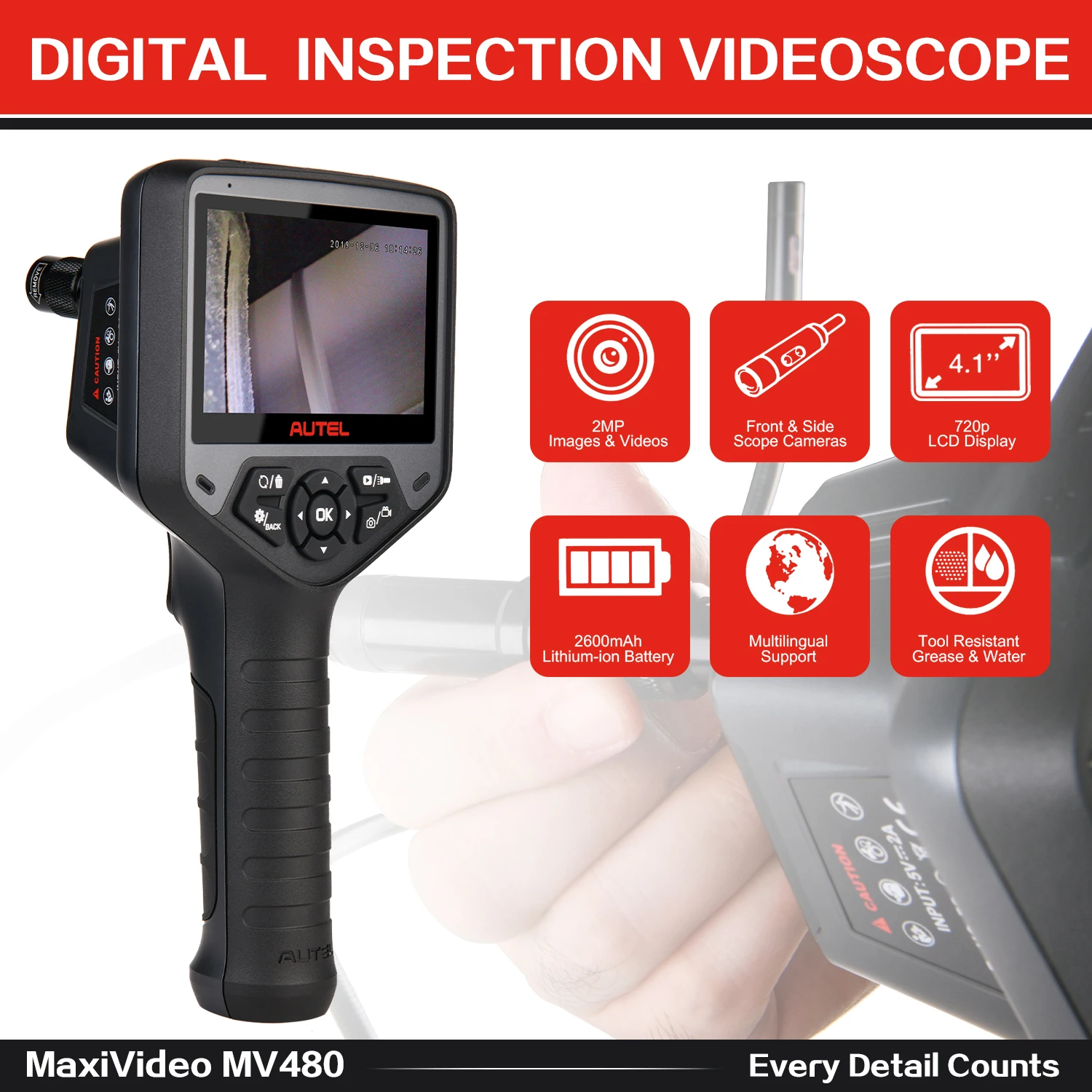

• Dual front and side cameras for wider viewing angles
• 4.1-inch full-color LCD display (1200 × 720)
• One-button quick capture for photos and video recording
• 70-degree field of view for expanded visibility
• Audio annotation for detailed inspection review
• Micro HDMI output for streaming to larger external monitors
• Freeze-frame function for images and videos
• On-screen horizontal and vertical image rotation
• Playback of recorded images and video clips
• 7× digital zoom for enhanced viewing

Storage, Lighting & Power

• Includes 8GB Micro SD card (supports up to 128GB)
• Mini USB cable for image and video transfer
• Over 10,000 lux LED brightness
• 10-level adjustable LED lighting
• Built-in flashlight for enhanced visibility in low-light areas

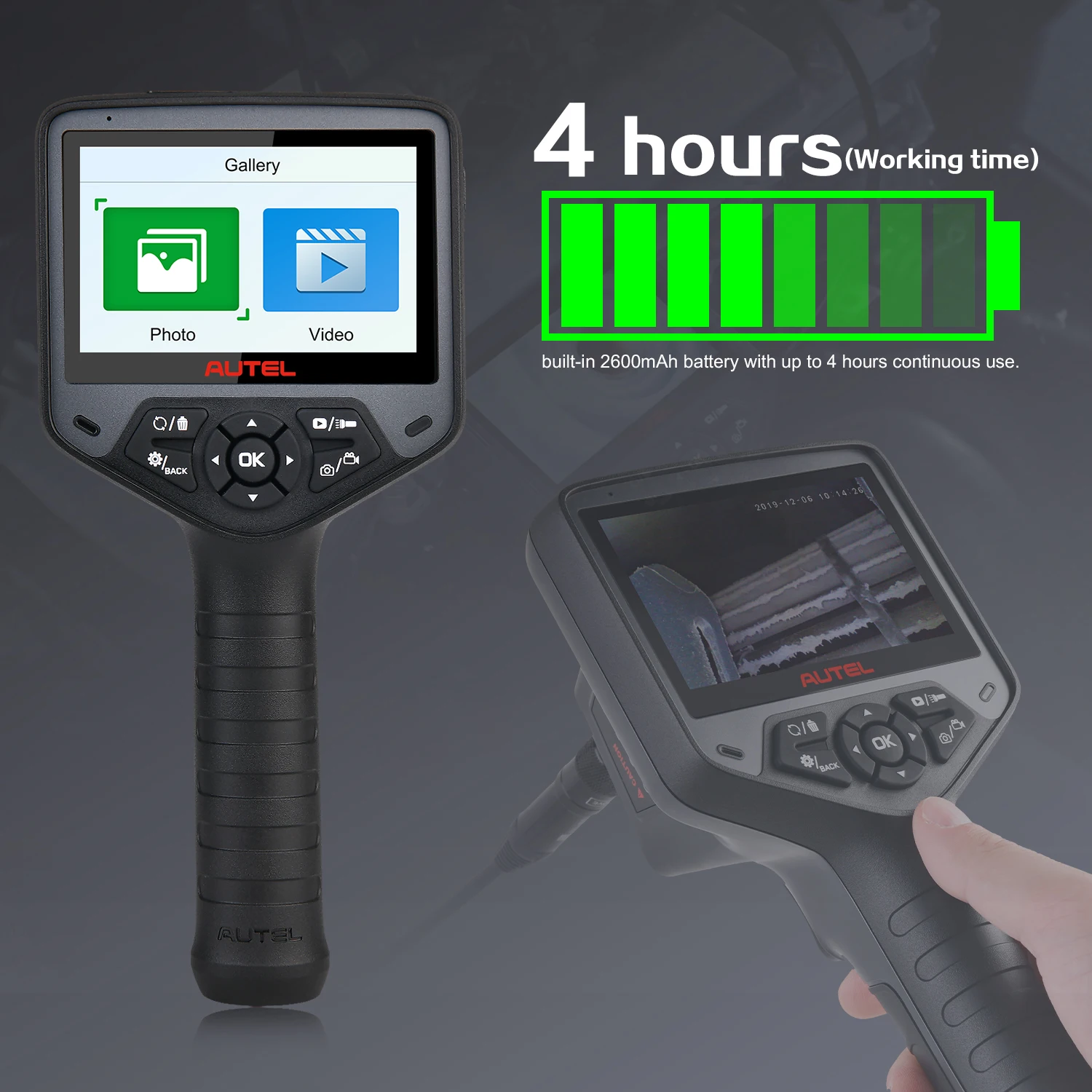

• Built-in 2600mAh rechargeable lithium battery
• Up to 4 hours of continuous operation

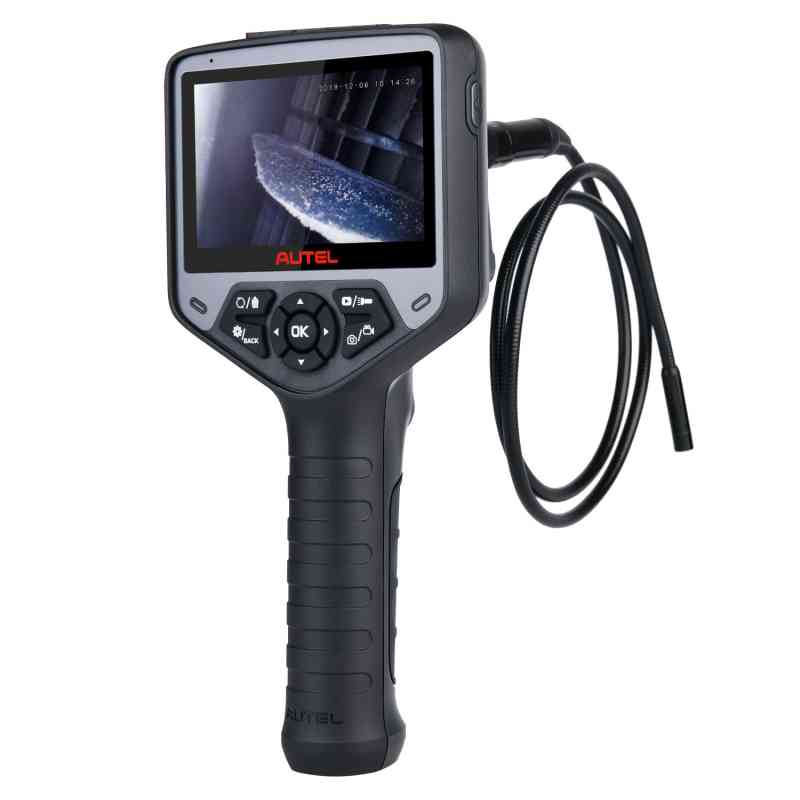

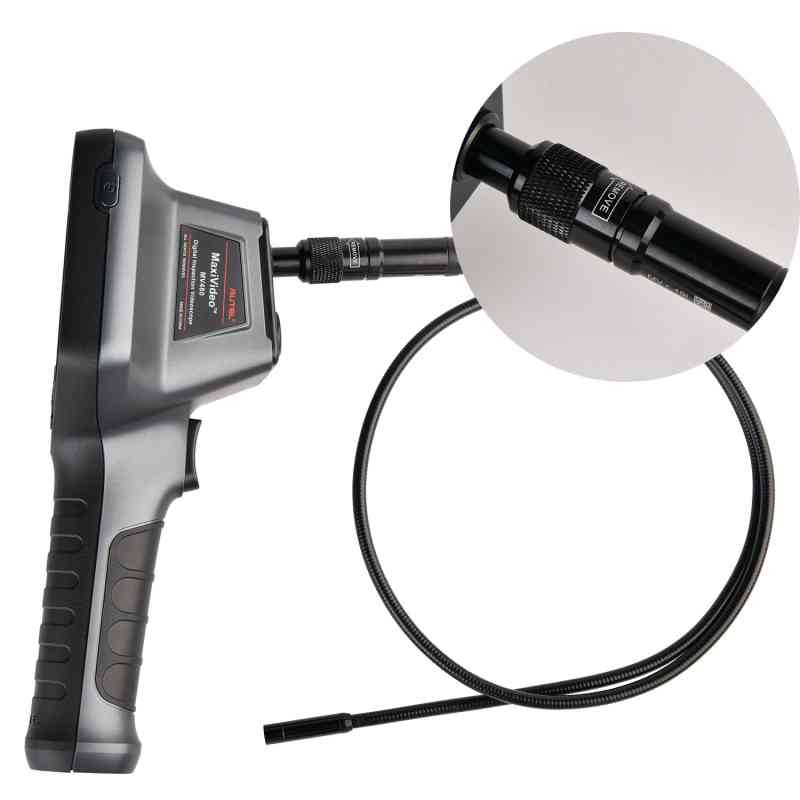

Cable & Camera Probe

• 1m (39.4”) semi-rigid flexible waterproof cable
• Includes magnet and hook accessories
• 8.5mm (0.33”) probe, ideal for spark plug holes
• Compatible with optional 5.5mm camera head (not included)
• Waterproof up to 1 meter depth (camera head and cable only)

Technical Specifications

• Recommended Use: Indoor
• Optimal Viewing Distance: 0.79” – 2” (2 cm – 5 cm)
• Image Format: JPG (1920 × 1080 pixels)
• Video Format: MP4 (1920 × 1080 pixels)
• Display Type: 4.1” TFT LCD
• Display Resolution: 1200 × 720 pixels
• Power Supply: Built-in rechargeable lithium-ion battery (3.7V / 2600mAh)
• Battery Life: Approximately 4 hours of continuous use
• Dimensions: 243 × 116 × 122 mm (9.6” × 4.6” × 4.8”)
• Weight: 0.422 kg (0.93 lbs)
• Storage Medium: Micro SD card (8GB standard / up to 128GB)
• Ports: TF card slot, Mini USB, Micro HDMI
• Main Unit Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Cable Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 5% – 95% non-condensing

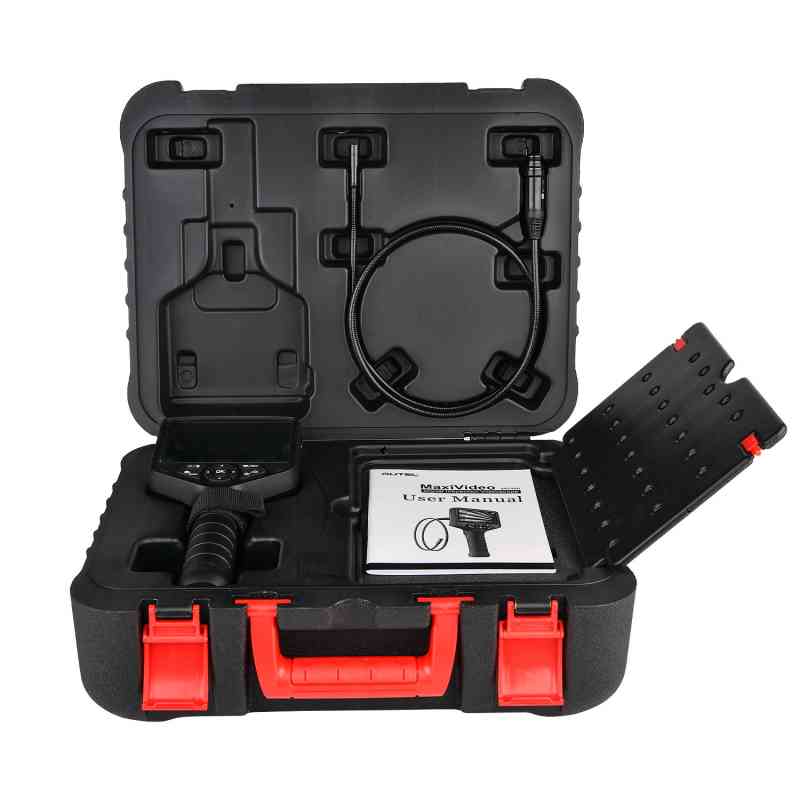

Package Contents

• 1 × Autel MaxiVideo MV480 Main Unit
• 1 × 8.5mm Imager Head & Cable
• 1 × Magnet and Hook Accessories
• 1 × User Manual
• 1 × Protective Carrying Case
• 1 × Micro SD Card
• 1 × Charger
• 1 × RS232 Serial Cable
• 1 × Mini USB Cable
