MAxiFlash-J2534 MaxiFlash Pro Programming Tool

Autel MaxiFlash Elite – J2534 Pass-Thru Programming Interface

MaxiFlash Elite is a multi-protocol vehicle Pass-Thru interface fully compliant with SAE J2534-1 and SAE J2534-2 (March 2006). It is specifically designed to provide users with reliable PC communication and ECU reprogramming capabilities on modern vehicle diagnostic buses.

MaxiFlash Elite delivers the key features demanded by OEM customers, including high reliability, fast performance, and maximum flexibility, making it an ideal solution for professional diagnostics and ECU programming.

Main Features

• Fully compliant with SAE J2534-1 and J2534-2 reprogramming standards
• Performs standard J2534 Pass-Thru functions

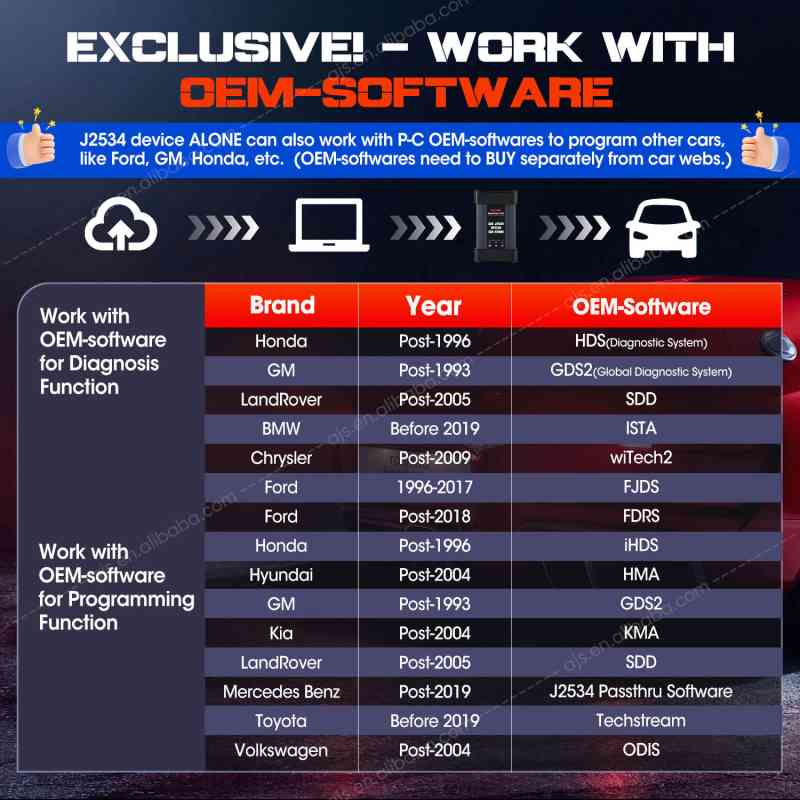

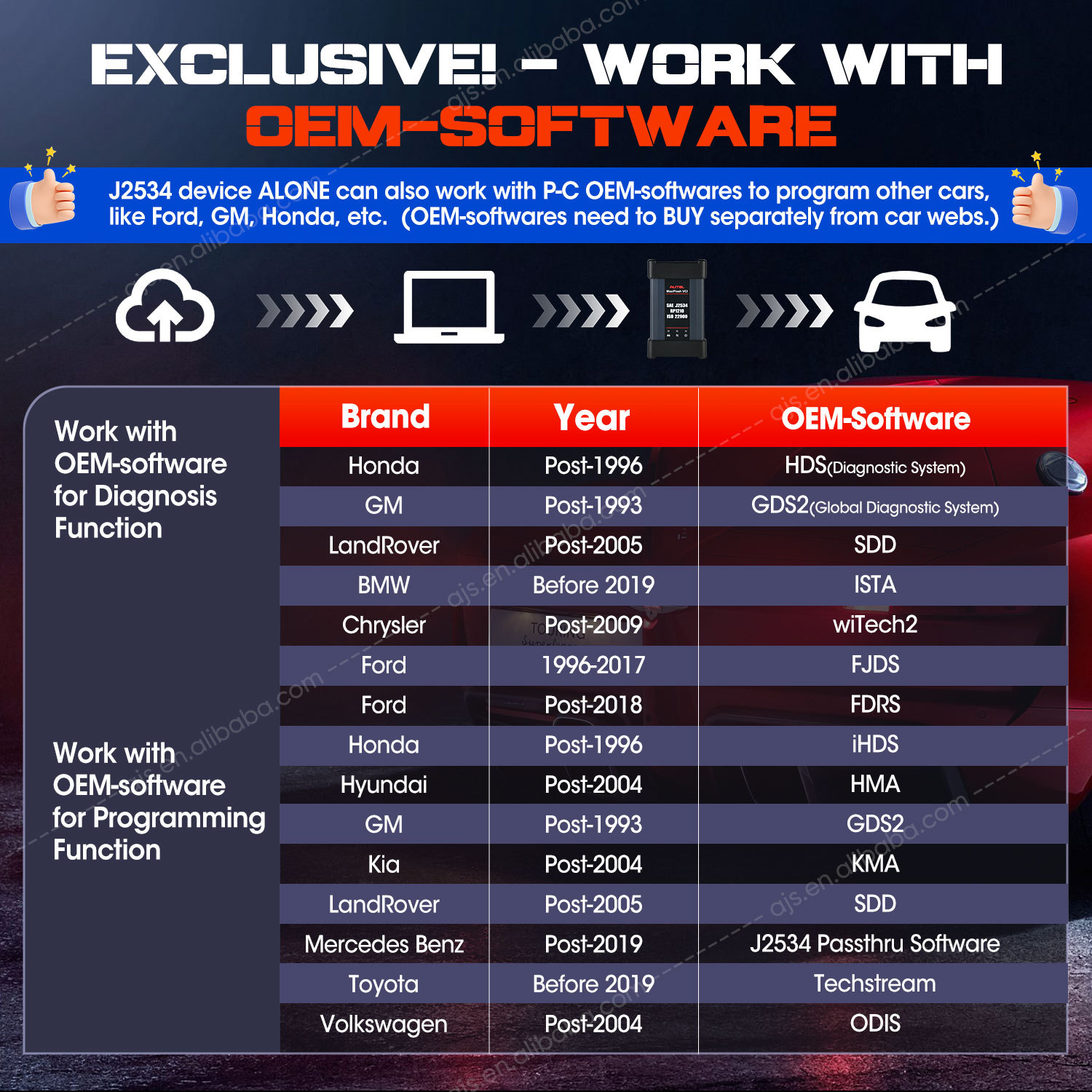

• Compatible with OEM diagnostic software such as:
  • Toyota Techstream
  • Volvo VIDA
  • Honda HDS
  • Jaguar & Land Rover IDS
  • BMW 3G diagnostic systems
• High-speed performance for fast ECU reprogramming, even on latest controllers
• Wireless operation with advanced network functionality
• Built-in wireless data storage
• Rugged design suitable for harsh workshop environments
• Internet updatable firmware

Technical Specifications

• Communication Interface: Bluetooth V2.1 + EDR, USB 2.0
• Wireless Frequency: 2.4 GHz
• Input Voltage Range: 12 VDC – 24 VDC
• Current Supply:
  • 170 mA @ 12 VDC
  • 100 mA @ 24 VDC
• Operating Temperature: 0°C to +60°C (approx.)
• Storage Temperature: -65°C to +100°C (approx.)
• Dimensions:
  • Length: 149 mm (5.87")
  • Width: 86 mm (3.38")
  • Height: 35 mm (1.28")
• Weight: 0.29 kg (0.64 lbs)

Applications

• ECU programming and reprogramming
• OEM-level diagnostics via J2534 Pass-Thru
• PC-based vehicle communication
• Professional workshop and dealer-level use

Important Notes

• Requires compatible OEM diagnostic software
• Designed for professional and workshop use
• Ensure vehicle and software compatibility before operation
• Internet connection required for updates
