AUTEL MaxiSys MS909EV – Advanced Intelligent EV Diagnostics

AUTEL MaxiSys MS909EV – Advanced Intelligent EV Diagnostics

Autel MaxiSys MS909EV is the next-generation intelligent diagnostic solution for electric, hybrid, gasoline, and diesel vehicles. Equipped with a dedicated EV Diagnostic Box (EVAG), MaxiFlash VCI, and detailed system graphics with guided instructions, MS909EV delivers a comprehensive approach to advanced vehicle diagnostics.

Bi-Directional Control & Active Testing

The MS909EV supports bi-directional control to test vehicle subsystems and components such as ABS, motor pumps, fuel pumps, wipers, headlights, windows, and doors. Technicians can activate actuators to verify real-time component operation.

40+ Service Functions & VAG Guided Functions

The Autel MS909EV provides over 36 maintenance services including Oil Reset, BMS, ABS Bleeding, EPB, TPMS, SAS Calibration, injector coding, suspension, crank/cam relearn, and power balance testing. For VAG vehicles, detailed step-by-step guided functions are available.

OE-Level Protocol Support

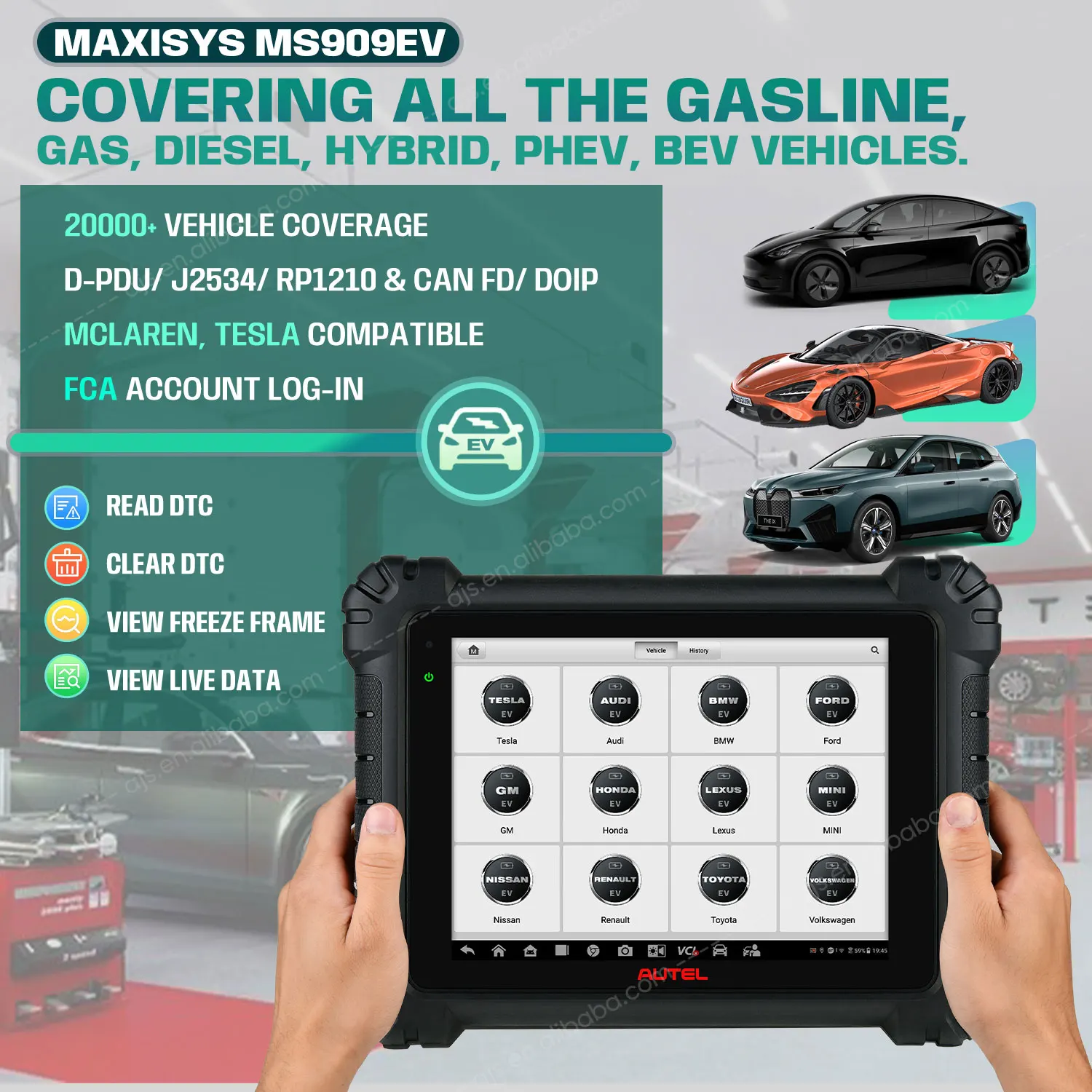

MS909EV supports D-PDU, RP1210, J2534, CAN FD, and DoIP protocols, enabling advanced diagnostics and ECU programming for OE-level applications including BMW, Mercedes-Benz, VW, Jaguar, Land Rover, Volvo, Chrysler, and more.

High-Voltage EV System Diagnostics

The MS909EV performs in-depth high-voltage system diagnostics, including reading/clearing DTCs, viewing live data, battery charge status, and battery health analysis. Battery pack diagnostics can be performed via OBD or direct connection using dedicated cables.

Workshop Efficiency & Data Management

With dynamic network topology mapping, data-driven DTC analysis, integrated TSBs, and cloud-based data management, the MS909EV helps workshops improve repair efficiency by over 70%.
