Autel CSC1004/09 – Mitsubishi 360 Panoramic Image System Calibration Pattern
- mpn
- CSC1004/09
Description

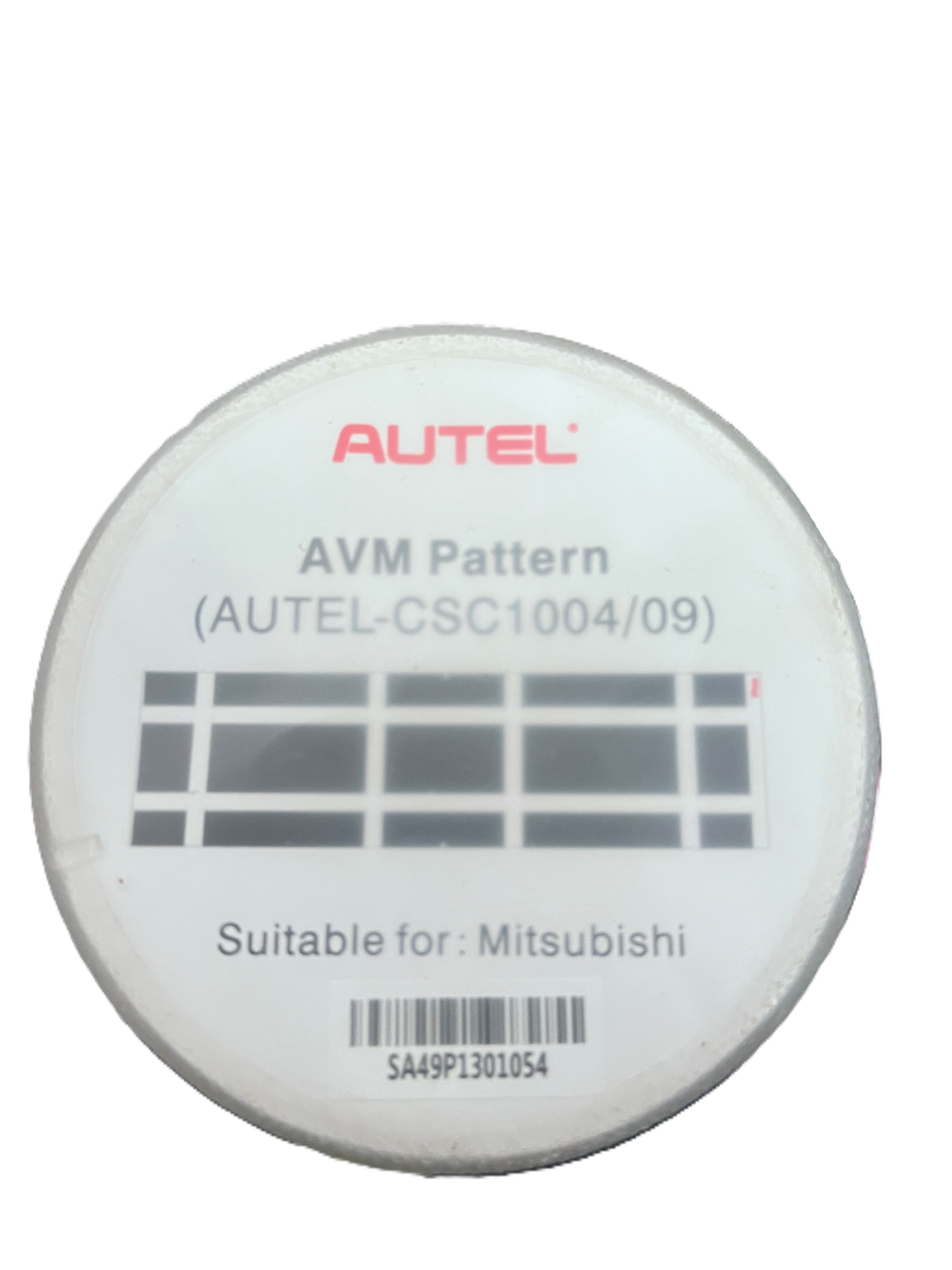

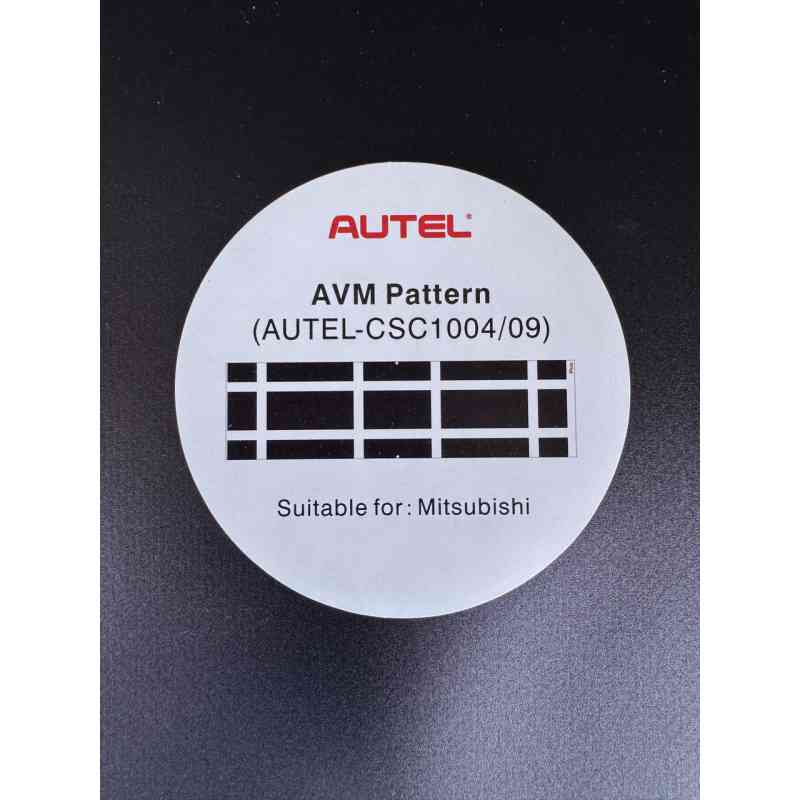

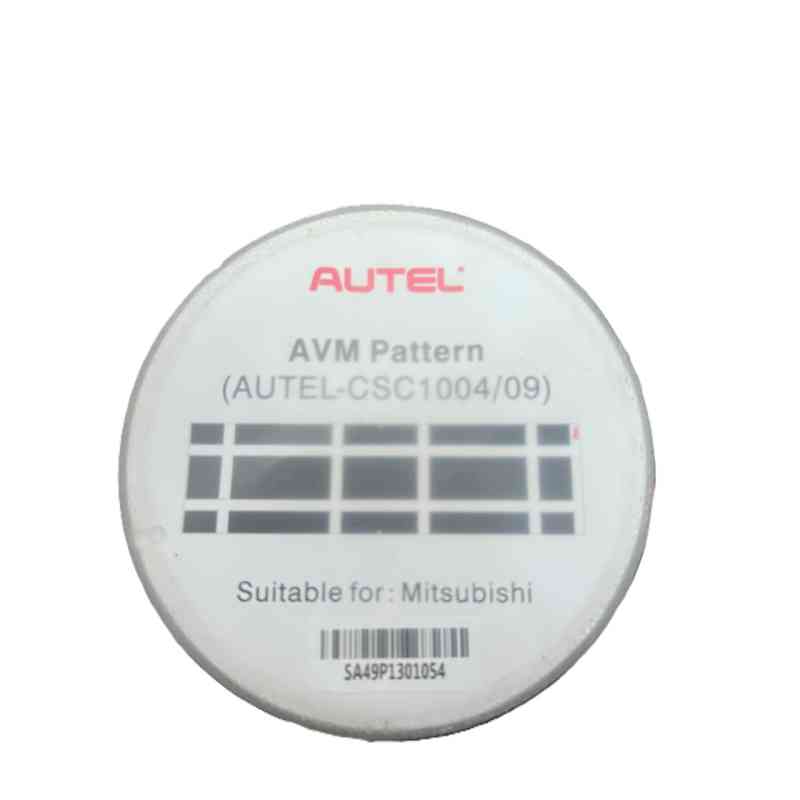

Autel CSC1004/09 – Mitsubishi 360 Panoramic Image System Calibration Pattern
Autel CSC1004/09 is a dedicated calibration pattern board for the **360° Panoramic Image / Around View Monitoring (AVM)** system on Mitsubishi vehicles. This pattern assists technicians in performing precise AVM camera calibration using **Autel ADAS systems**, including tablet, software, and calibration frame (sold separately).

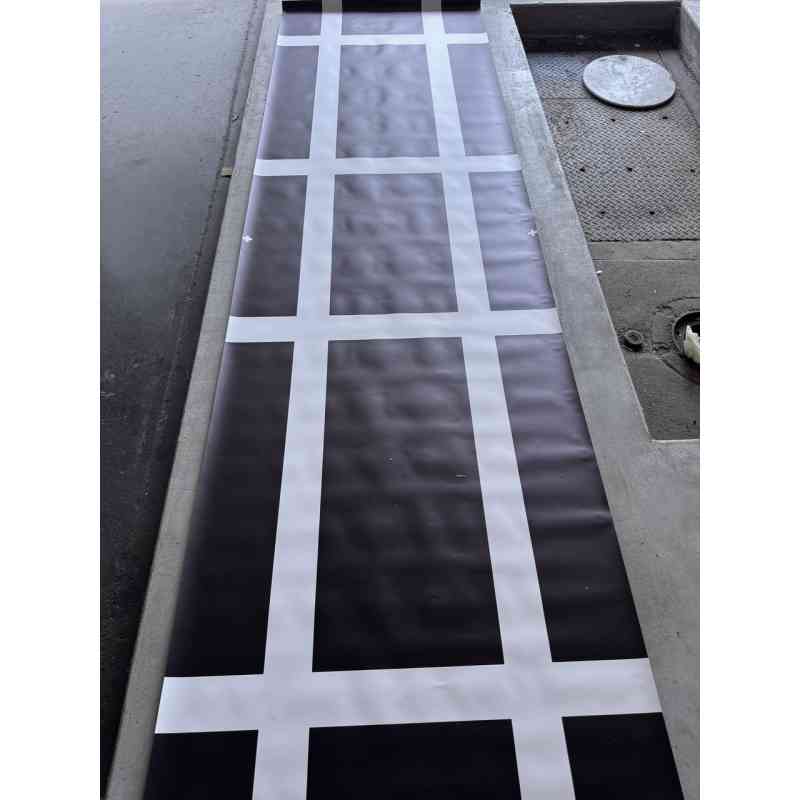

The target set includes two pieces — one for each side of the vehicle — positioned appropriately to ensure an accurate **360° surround view**. The 360 Panoramic Image system delivers a bird’s-eye view around the vehicle, which is crucial for parking and maneuvering in tight spaces.
Key Features
- Calibration pattern designed for **Mitsubishi 360 Panoramic Image / AVM system
- Compatible with Autel ADAS calibration systems (tablet, software & frame)
- Includes two target panels (left & right) for full AVM calibration
- Helps ensure accurate bird’s-eye view monitoring after service
- Used following service that affects camera positioning, such as sensor/bumper repair
This target board is part of the **All View Monitor/AVM Calibration** suite for ADAS, designed to help maintain proper function of the 360° camera system after repairs.
The Autel CSC1004/09 is an essential accessory for workshops that perform AVM/360° Around View calibrations on Mitsubishi vehicles, ensuring the system delivers accurate panoramic imagery post-service.
