Autel CSC1004/05 – Ford AVM Pattern Board (Around View Monitoring)
Description
Autel CSC1004/05 – Ford AVM Pattern Board (Around View Monitoring)

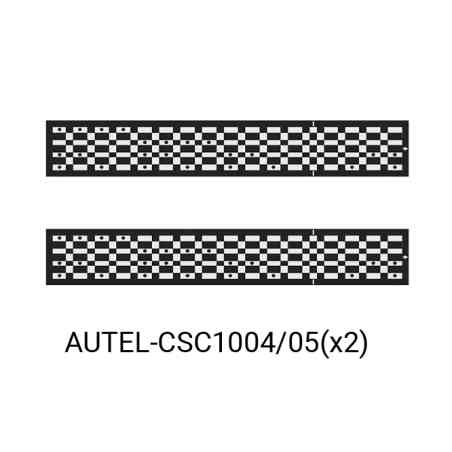

The Autel CSC1004/05 is a dedicated calibration pattern board designed for the 360° Around View Monitoring (AVM) camera systems on Ford vehicles. This two-piece pattern set provides a precise visual reference to properly align and calibrate the vehicle’s AVM cameras when performing ADAS calibration procedures using Autel calibration systems.
Used with Autel ADAS calibration tools (*tablet, software with ADAS upgrade, and calibration frame sold separately*), the Ford AVM patterns ensure that the vehicle’s surround-view system accurately stitches together camera images and displays a seamless 360-degree bird’s-eye view.
Key Features
- Specially engineered pattern board kit for Ford Around View Monitoring systems
- Two-piece pattern enables precise static AVM camera calibration }
- Works with Autel ADAS calibration packages and frames (sold separately)
- Requires Autel MaxiSYS ADAS or MS908-series tablet with ADAS software upgrade
- Heavy-duty, reusable vinyl patterns suitable for repeated workshop use
- One-year limited warranty
The Autel CSC1004/05 pattern board is ideal for professional technicians and workshops that support ADAS calibrations on Ford vehicles equipped with AVM systems, helping restore accurate camera alignment and reliable surround-view performance.
