ANCEL HD3600 Full System Diesel Diagnostic Premier Construction Machinery Equipment

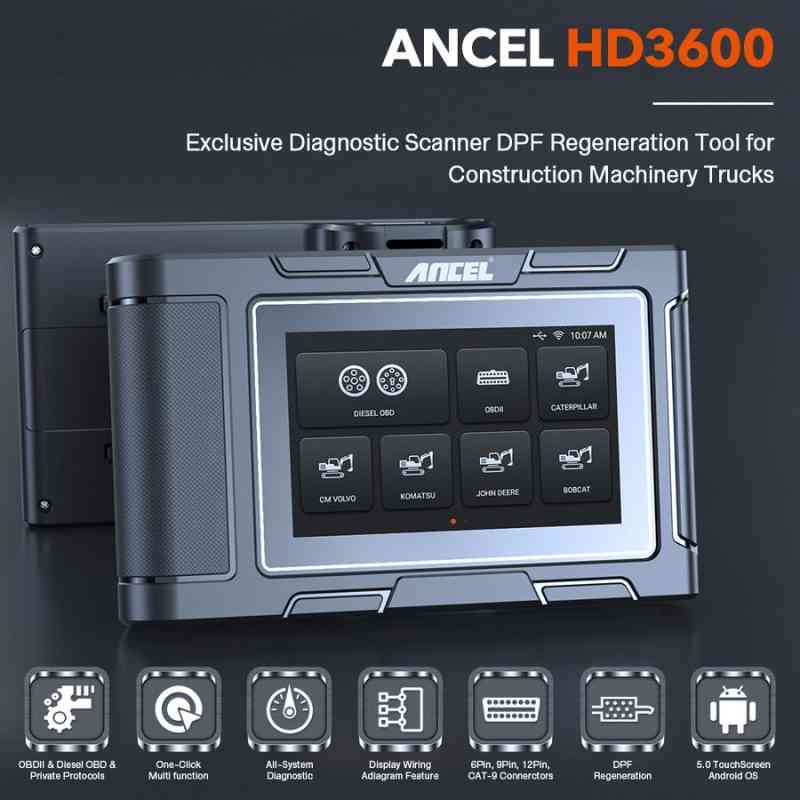

ANCEL HD3600 Diagnostic Tool

The HD3600 is a code reader for construction machinery specially developed for the American market, supporting brands such as Caterpillar, Komatsu, John Deere, Volvo, Hitachi, Yanmer, Bobcat, and Case. It comes with independent menus, supports DPF Regeneration, full system diagnostics, OBD2, diesel OBD standard protocol (including the latest J27145 protocol), and private protocols from manufacturers. Designed for convenience, it provides an intuitive experience for both professionals and DIY users.

Extensive Compatibility with Construction Machinery

Compatible with a wide range of equipment, including:

• Excavators
• Bulldozers
• Loaders
• Cranes
• Dump Trucks
• Agricultural Machinery
• HD Trucks
• Cement Trucks
• Refrigerated Trucks
• Recreation Trucks
• Off-road Equipment

Great Compatibility

The HD3600 supports OBD2, Diesel OBD Standard Protocol, and Private Protocols for leading brands such as:

• Caterpillar
• Komatsu (Cummins Engine)
• John Deere
• Volvo
• Hitachi
• Yanmer
• Bobcat (Cummins Engine)
• Case

Support for All-System Scan

The HD3600 supports all-system scans for construction machinery compliant with standard HD OBD protocols, including:

• Engine
• ABS/EBS
• Transmission
• Body Controller
• Chassis Controller
• Instrument Panel System
• Cruise Control
• Gateway
• And more...

With this tool, you can perform deep analysis, identify system issues, and carry out repairs yourself—saving both time and money.

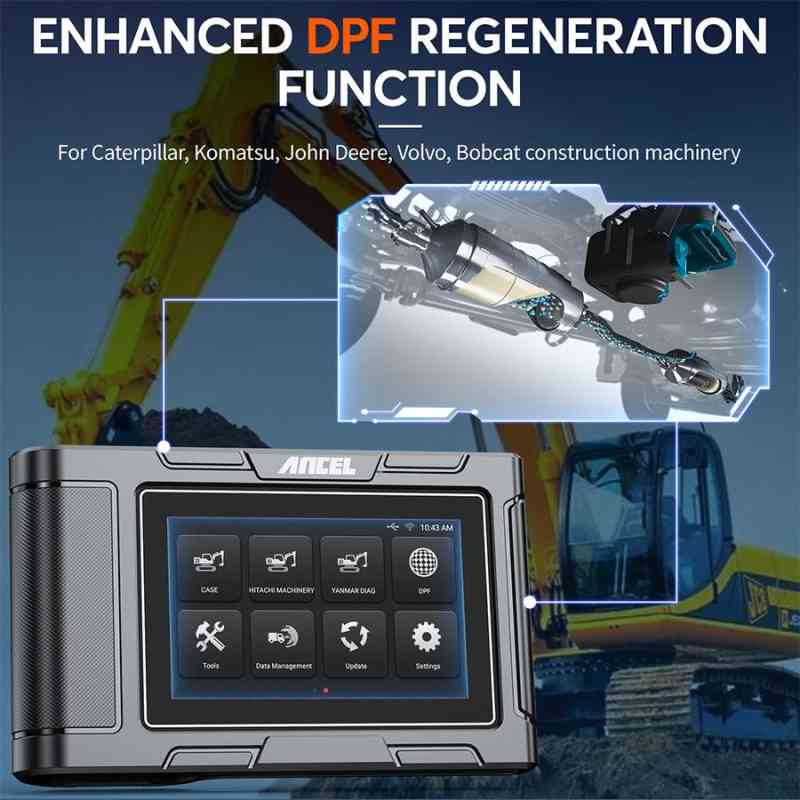

Enhanced DPF Regeneration Function

The HD3600 supports private protocols for Caterpillar, John Deere, Volvo, Komatsu, and Bobcat with advanced DPF features such as:

• DPF information reset
• DPR state reset
• Forced DPR regeneration
• Differential pressure check
• DPF forced regeneration

Unique Display Wiring Diagram for Cummins

Even without a diagnostic connector, the HD3600 can complete diagnostic work through its unique display wiring diagram function for Cummins engines.

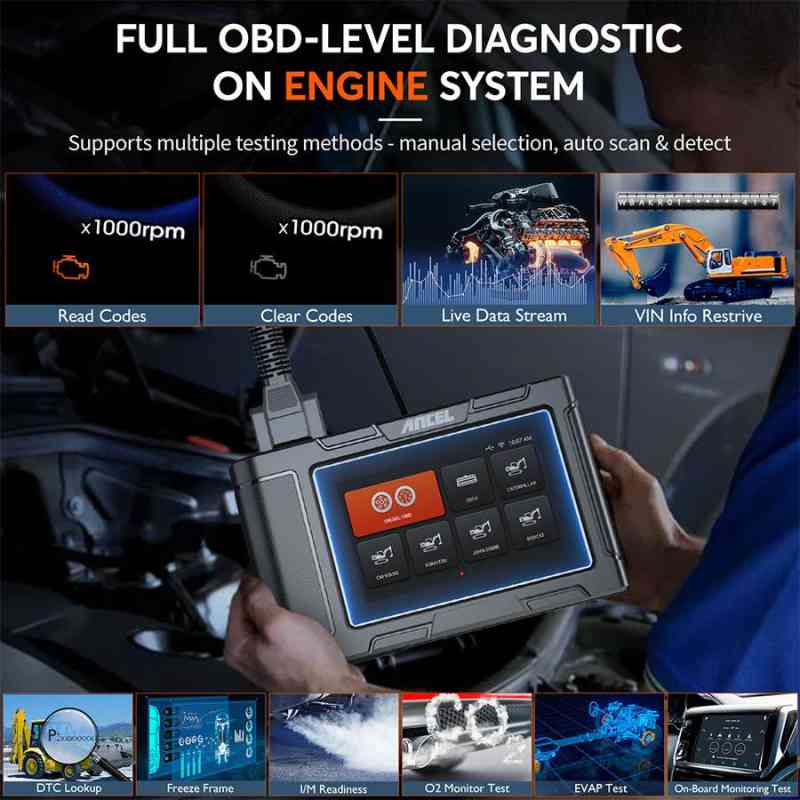

Full OBD-Level Diagnostics on Engine System

The HD3600 offers multiple testing methods under the Diesel OBD menu with two options: Auto Scan and Detect. If you are unsure of your vehicle's engine brand, the Auto Scan mode will quickly identify and diagnose problems.

It supports essential functions such as:

• Read Codes
• Clear Codes
• Live Data Stream
• DTC Lookup

In addition, if your truck supports the OBD2 protocol standard (16-pin), it can also perform basic OBD2 functions.
